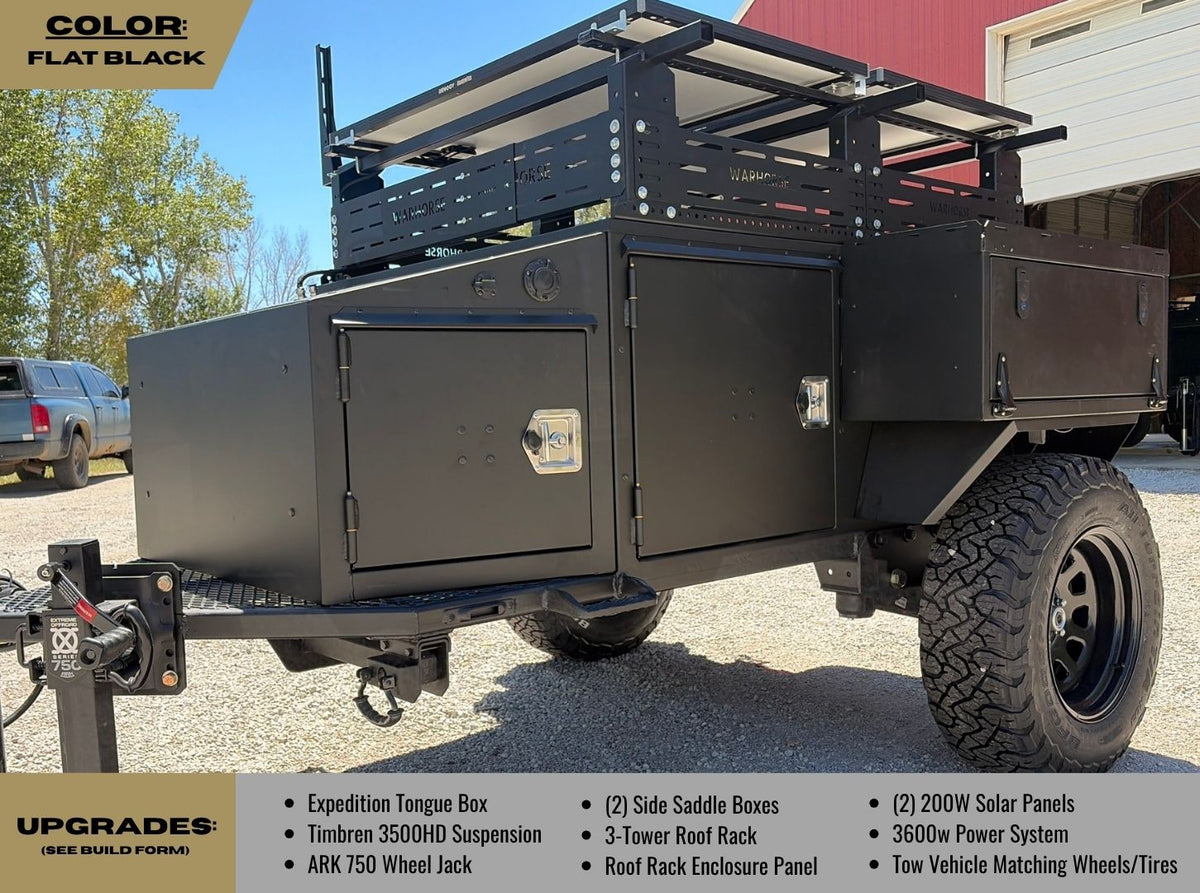

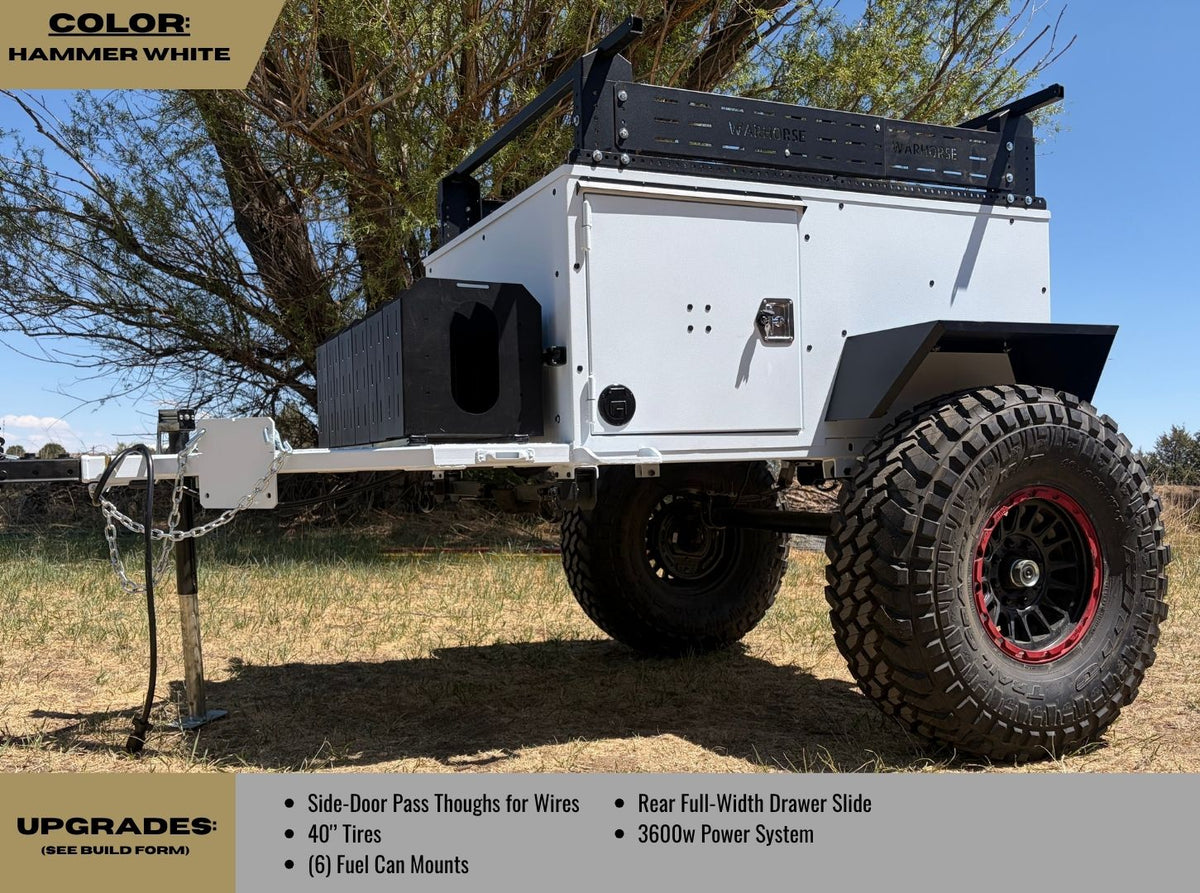

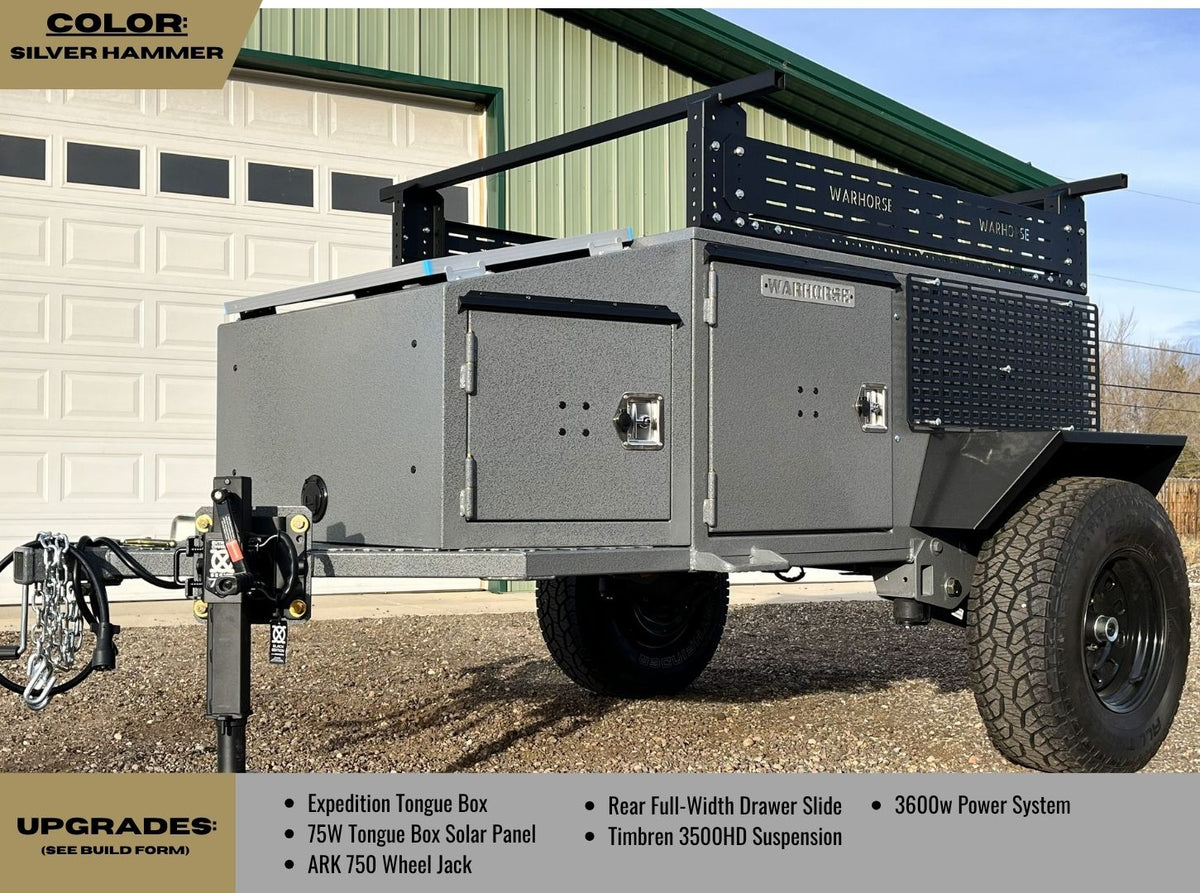

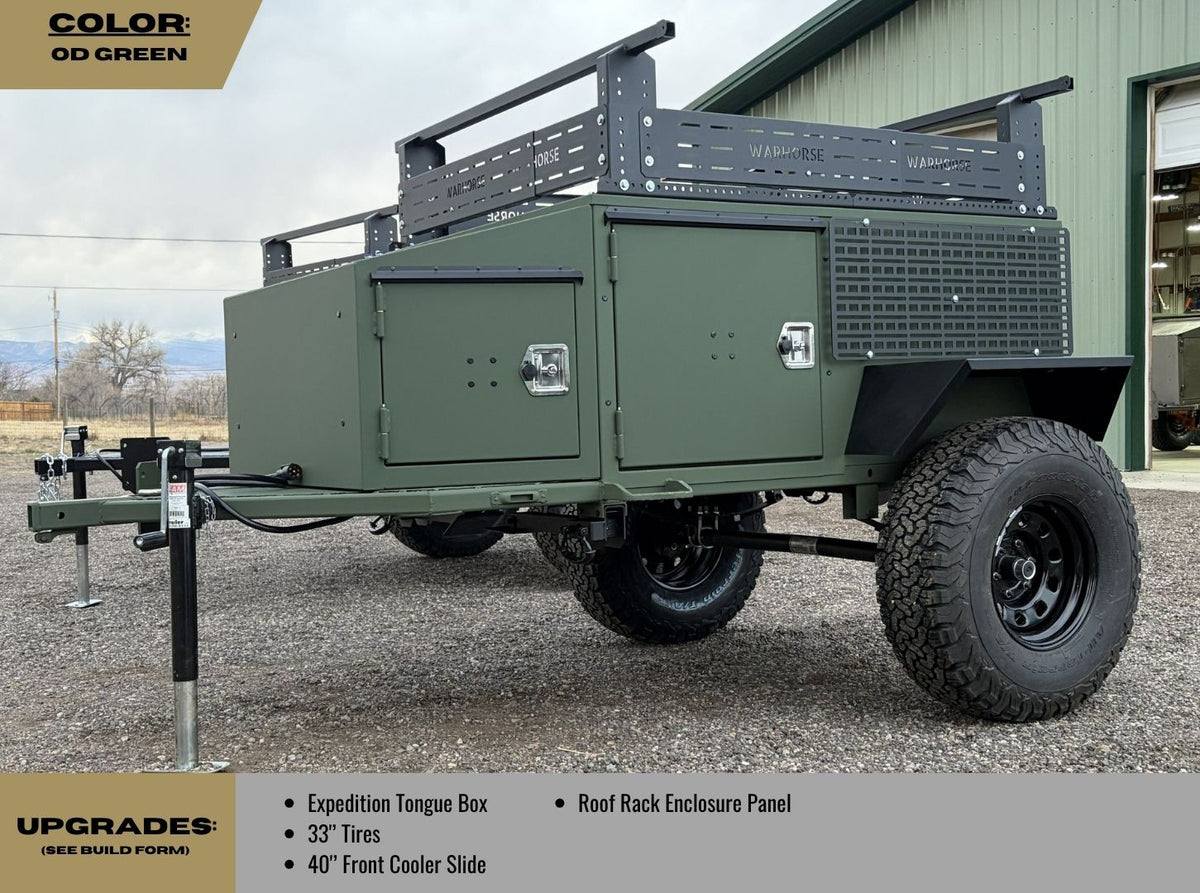

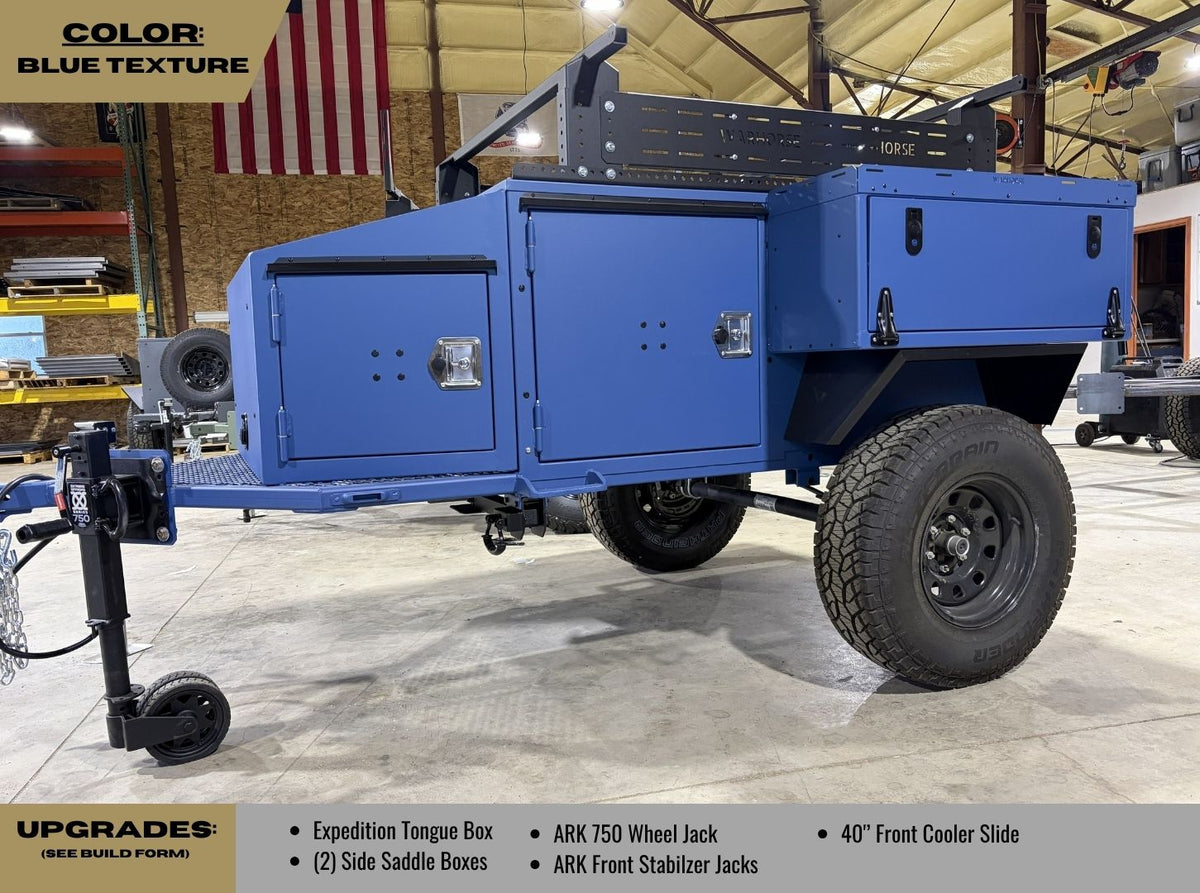

SEE BUILD FORM for ACCESSORIES/UPGRADES
Once a build form is submitted, a formal quote will be provided after we discuss your needs.

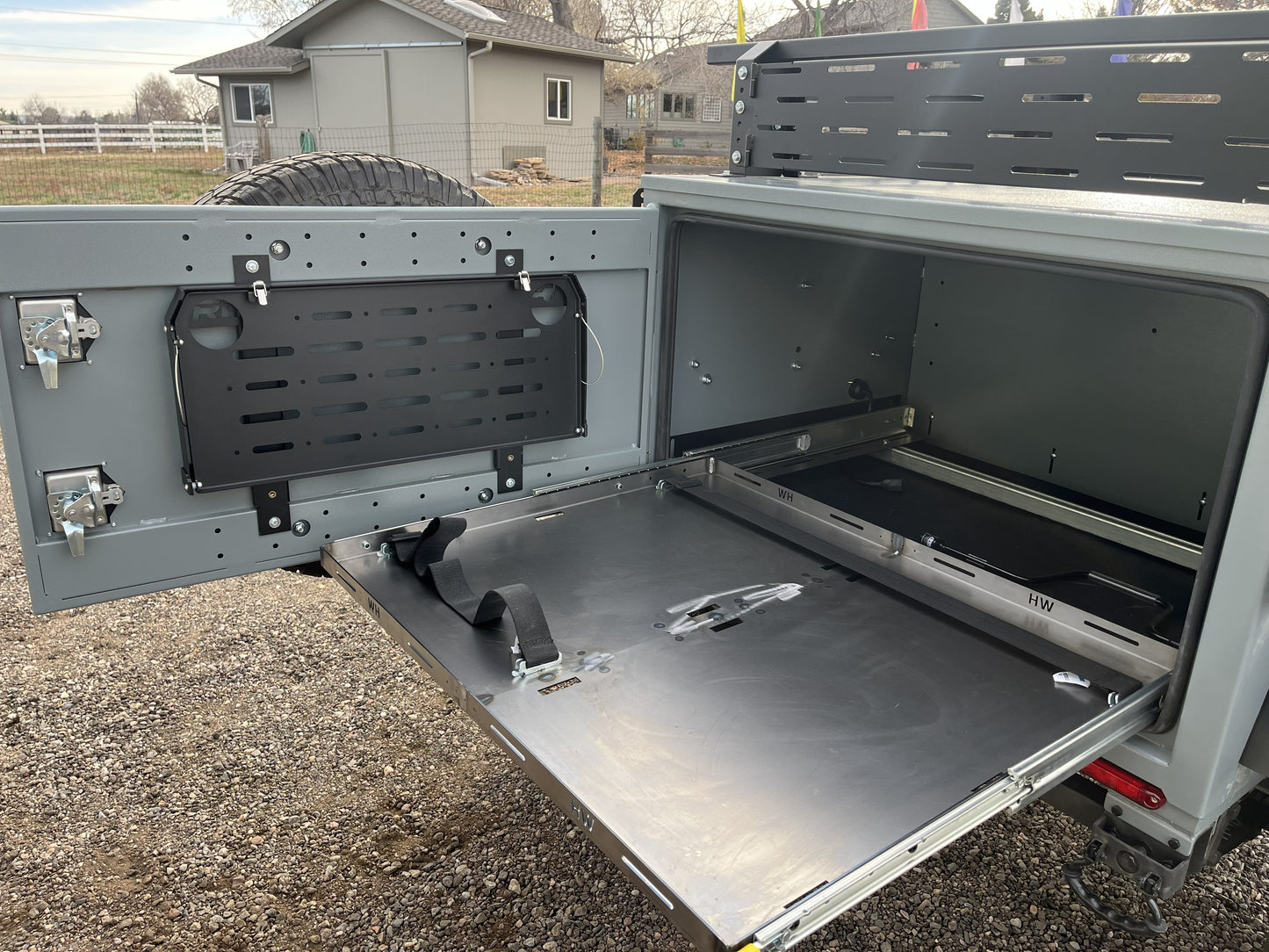

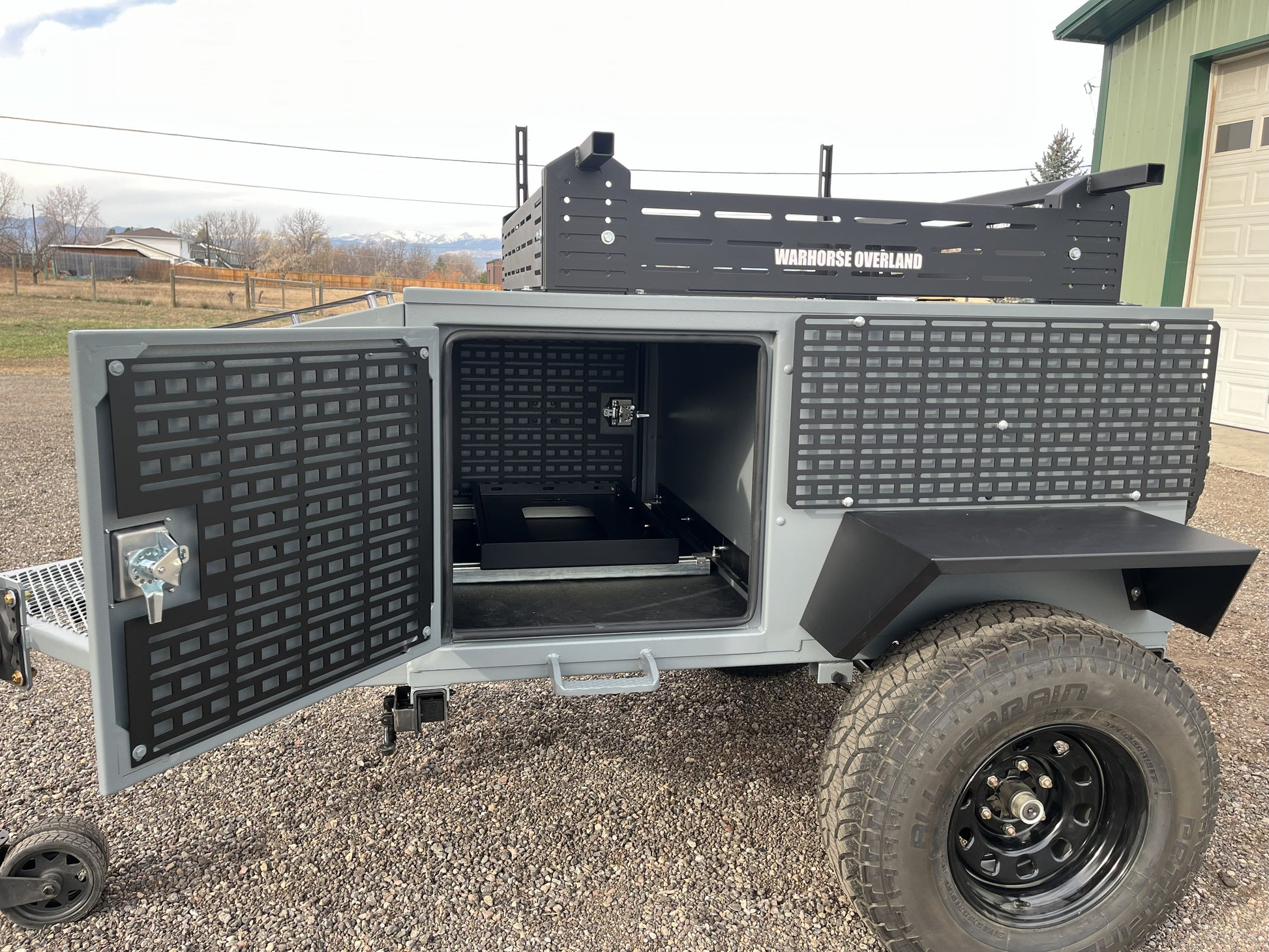

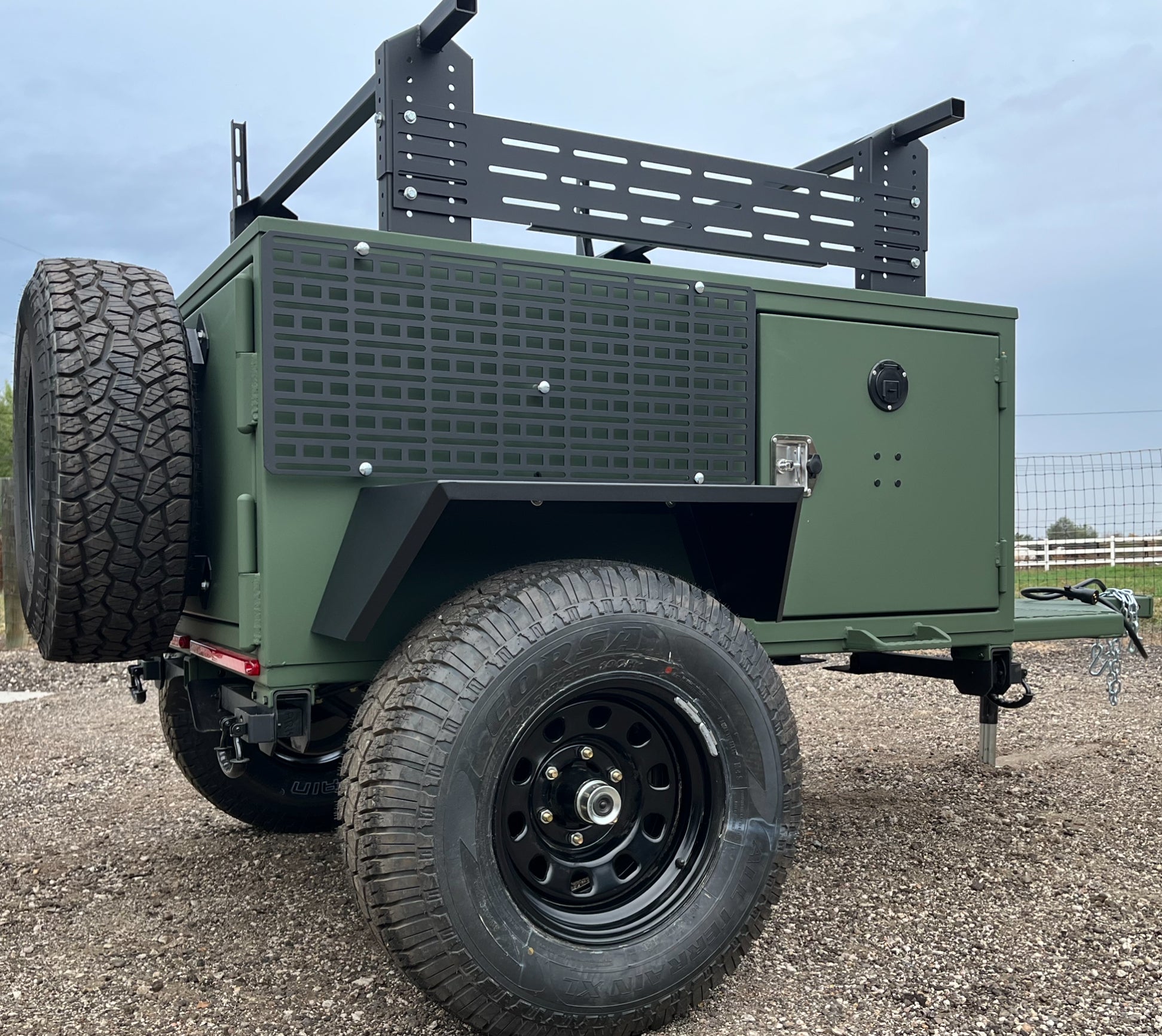

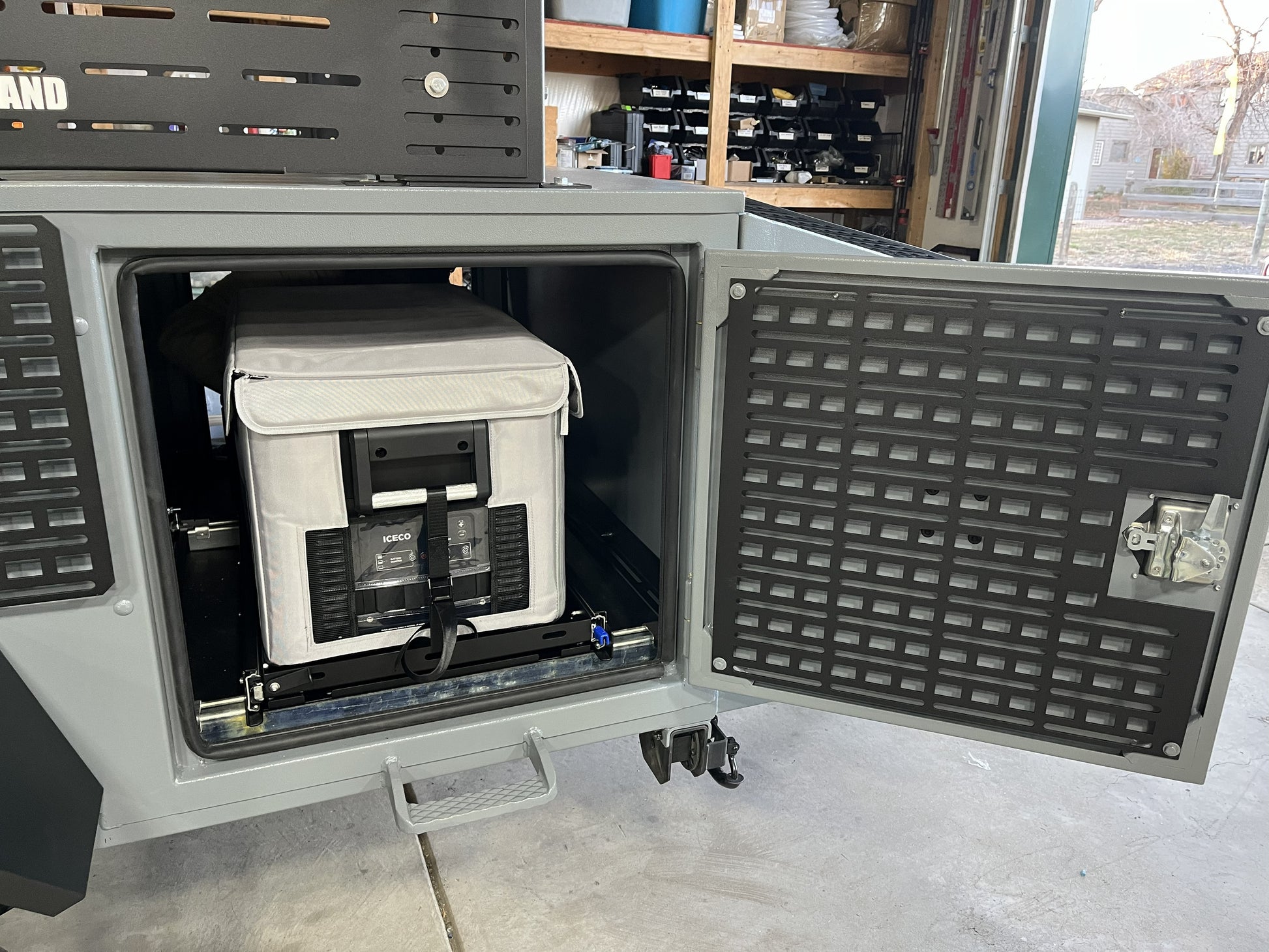

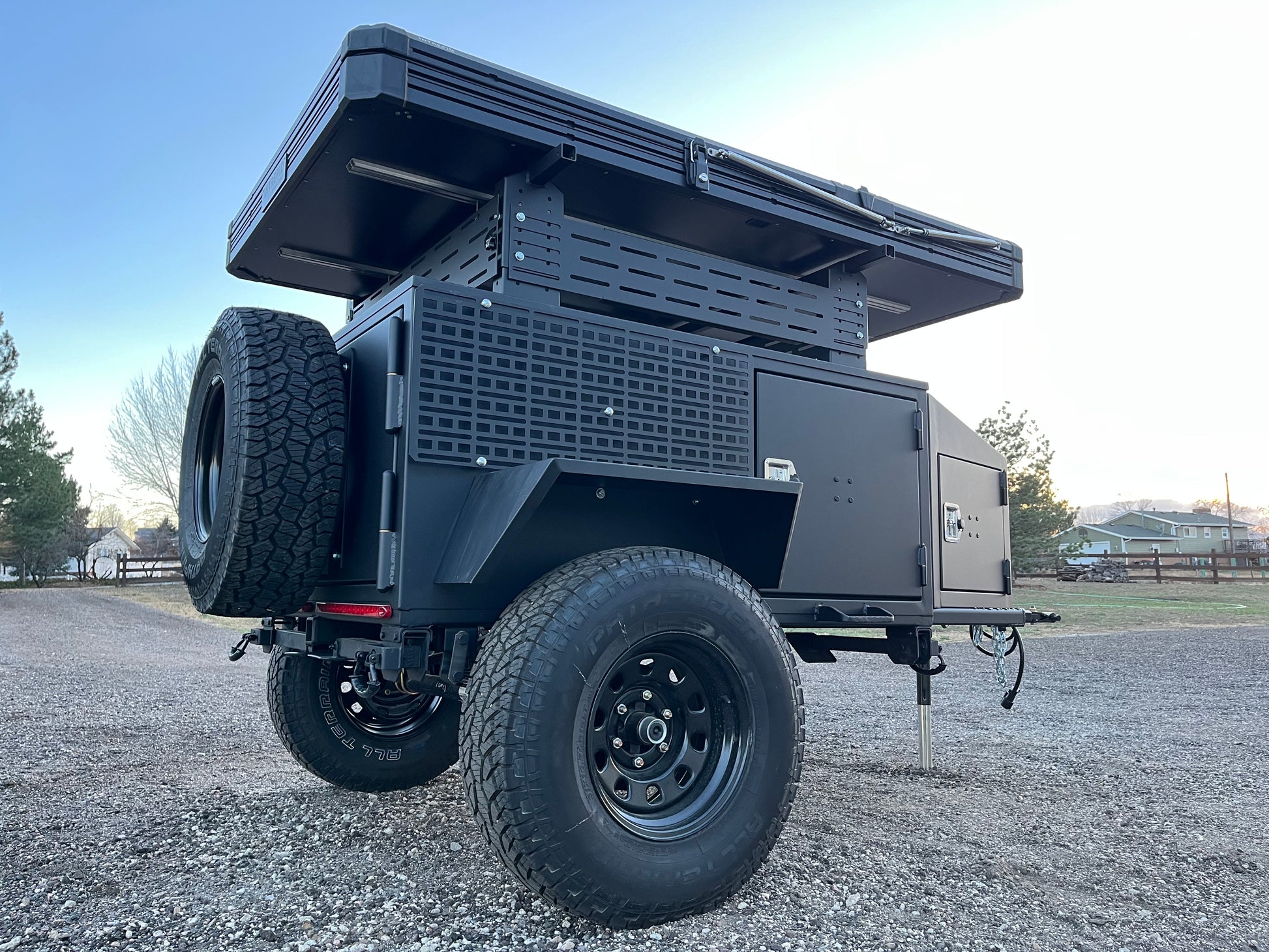

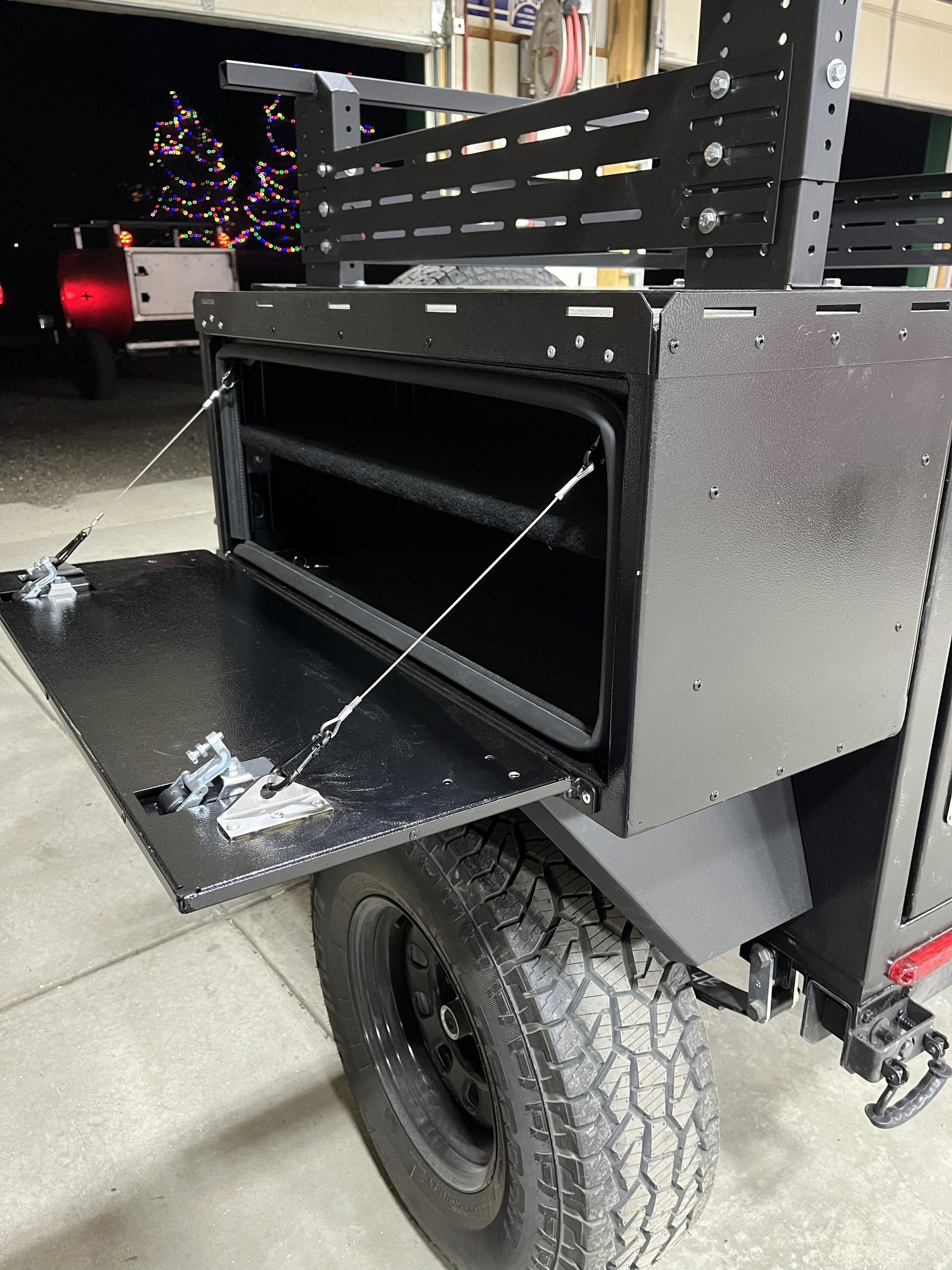

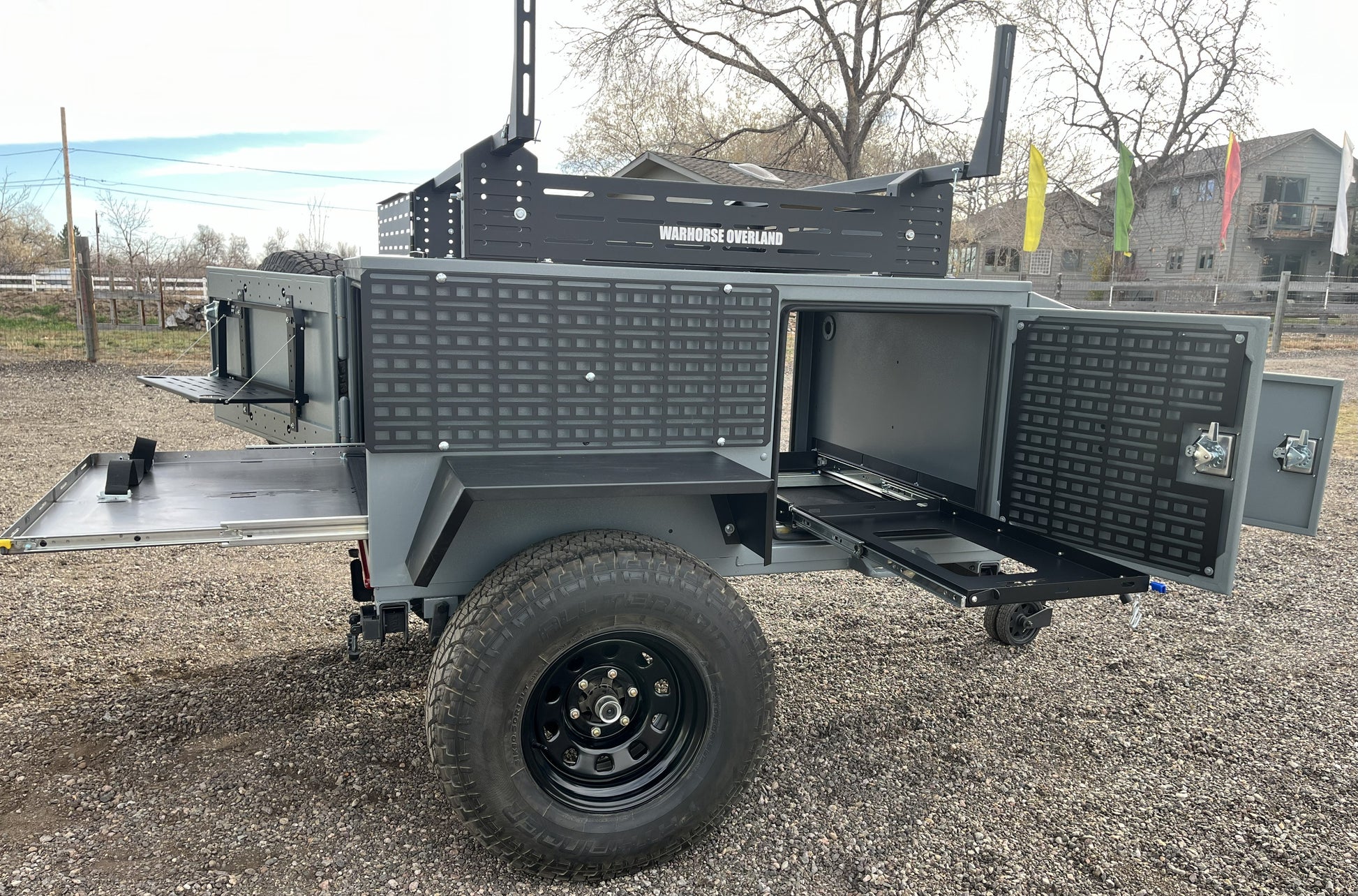

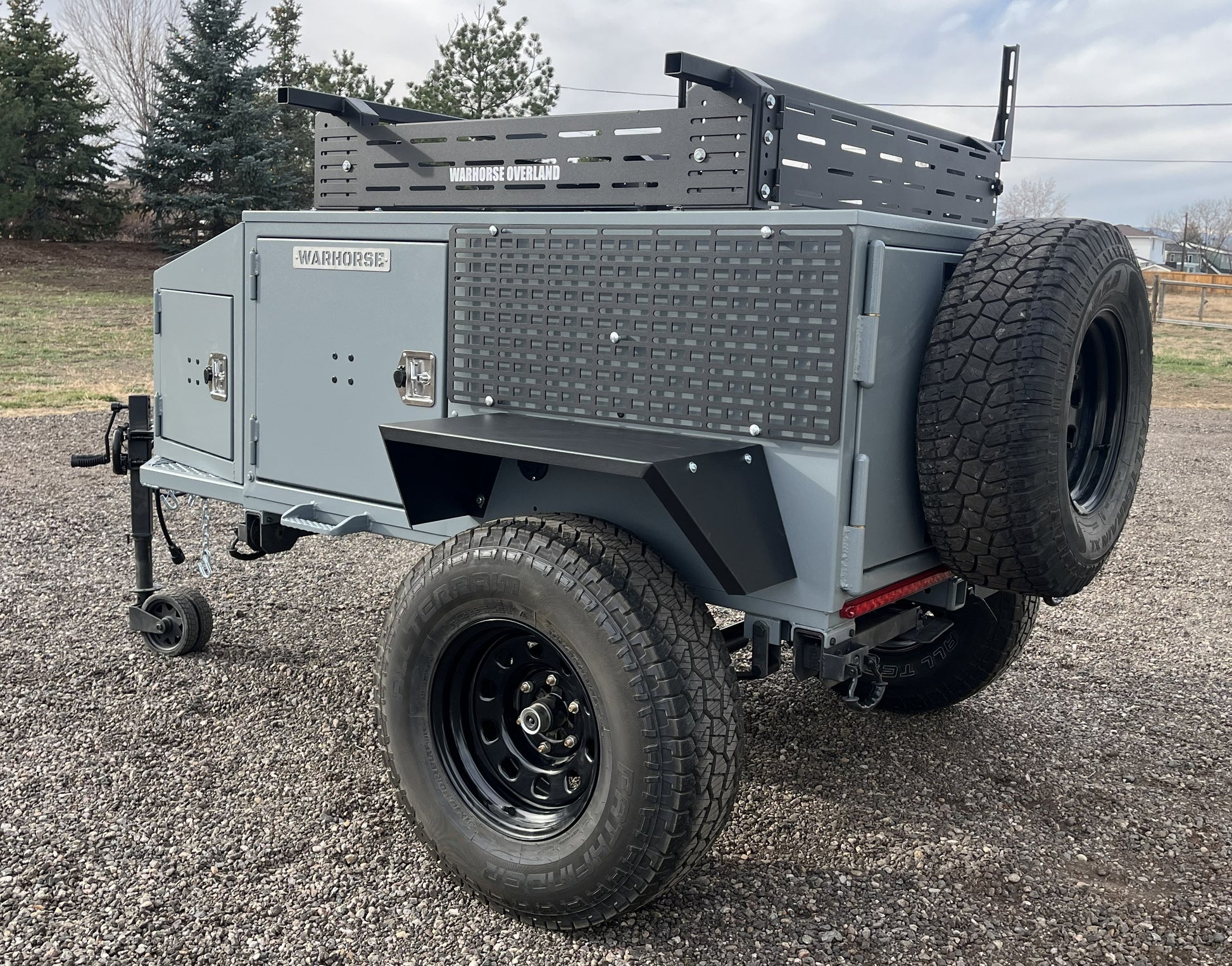

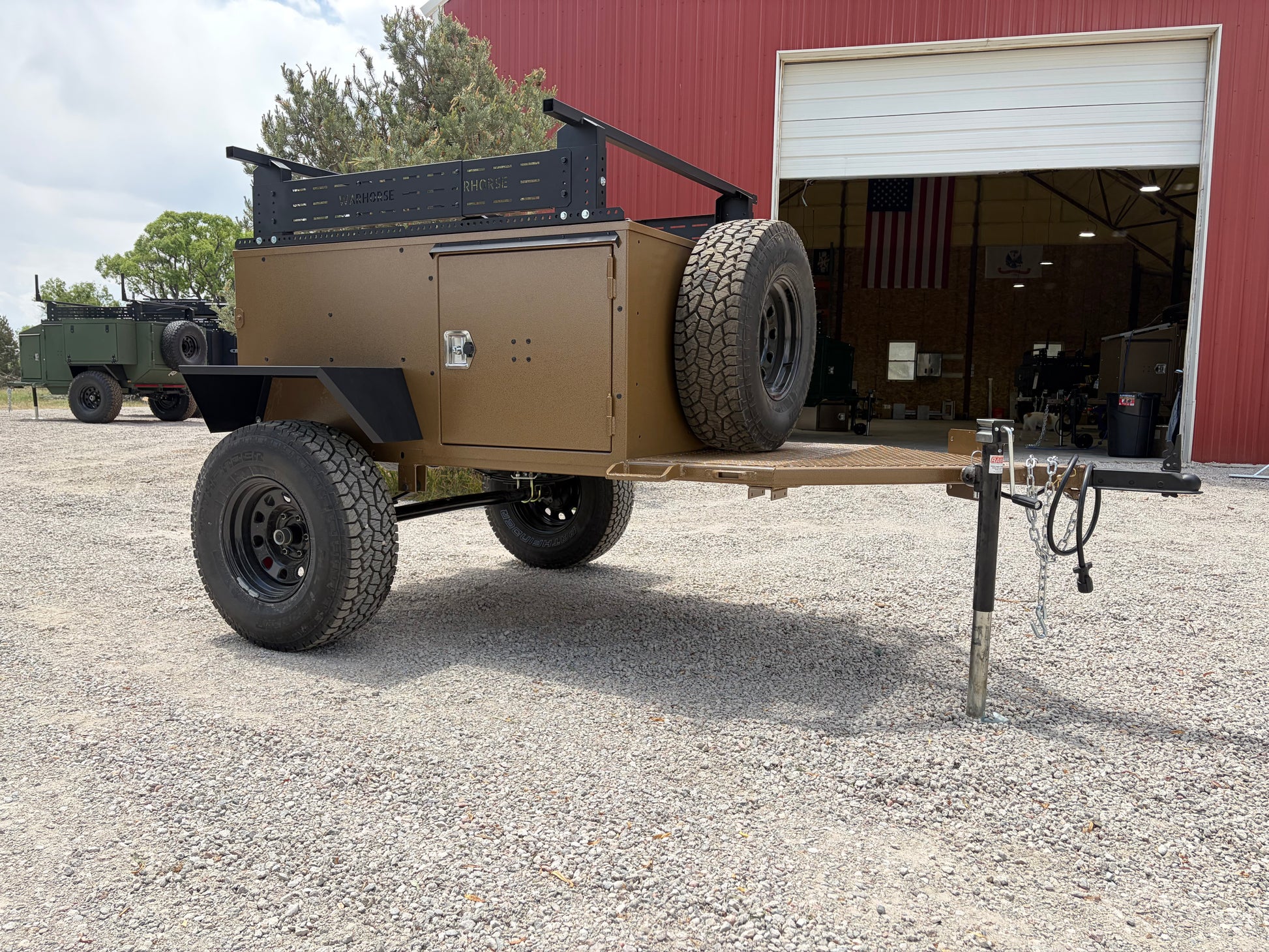

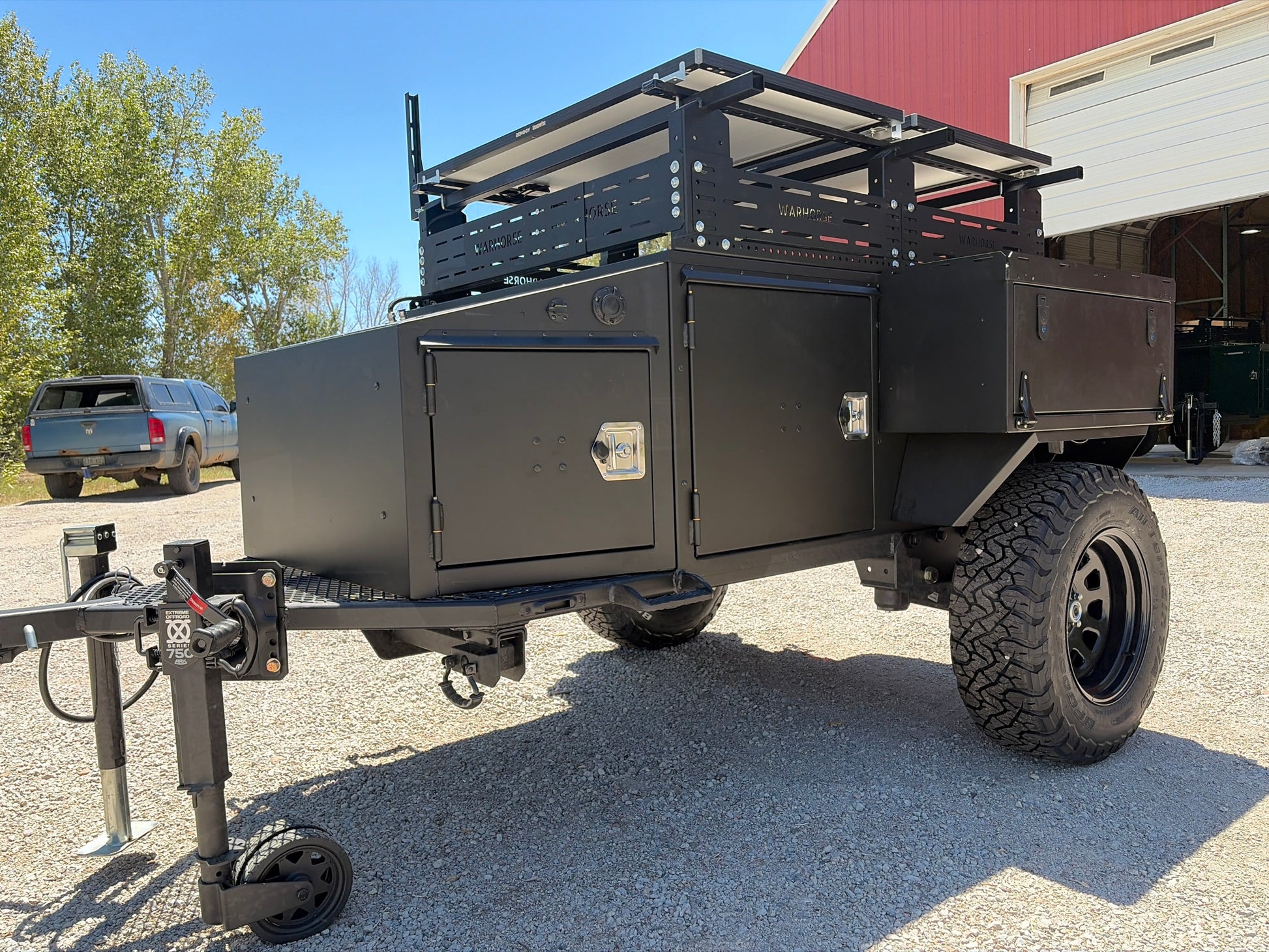

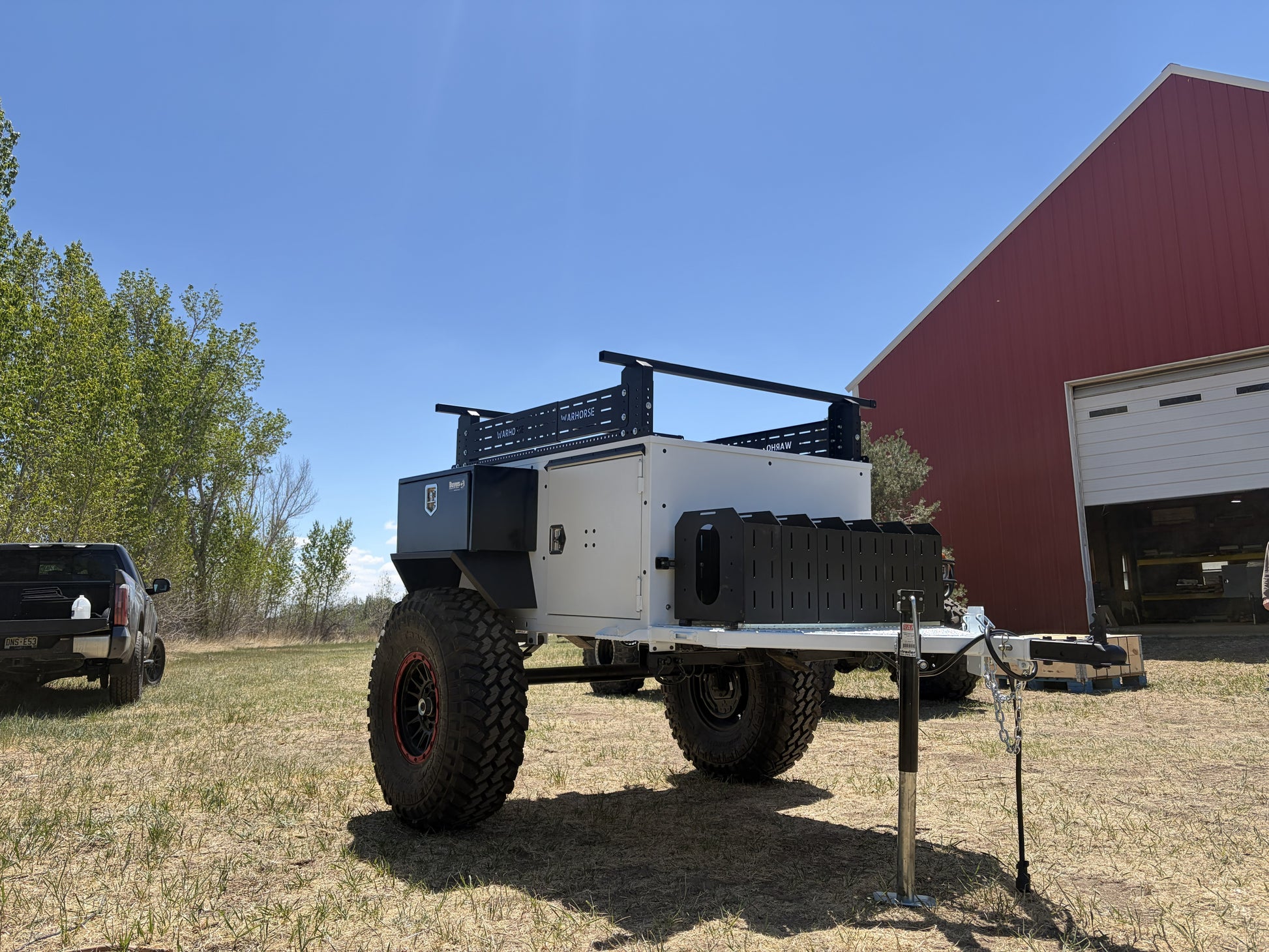

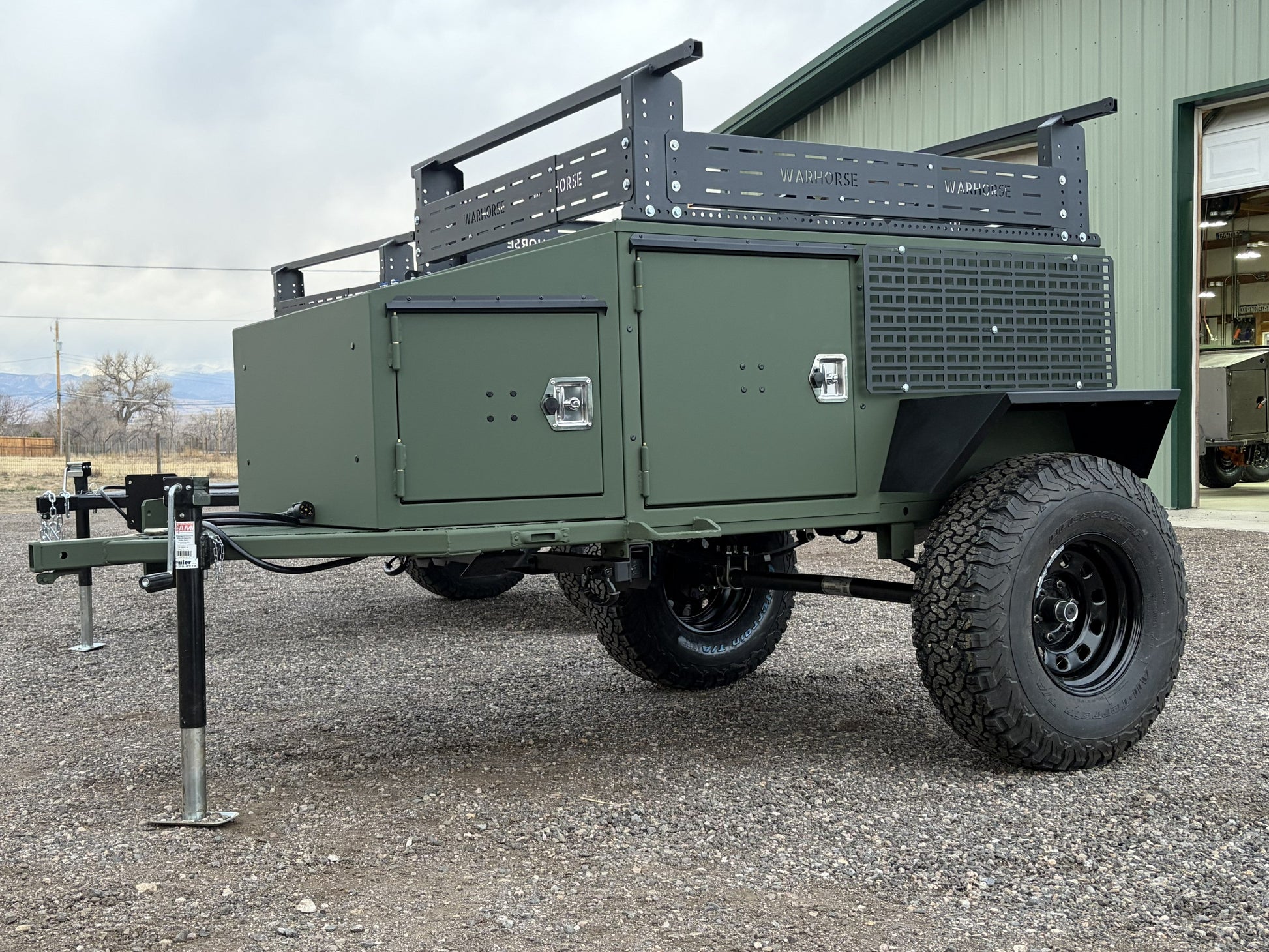

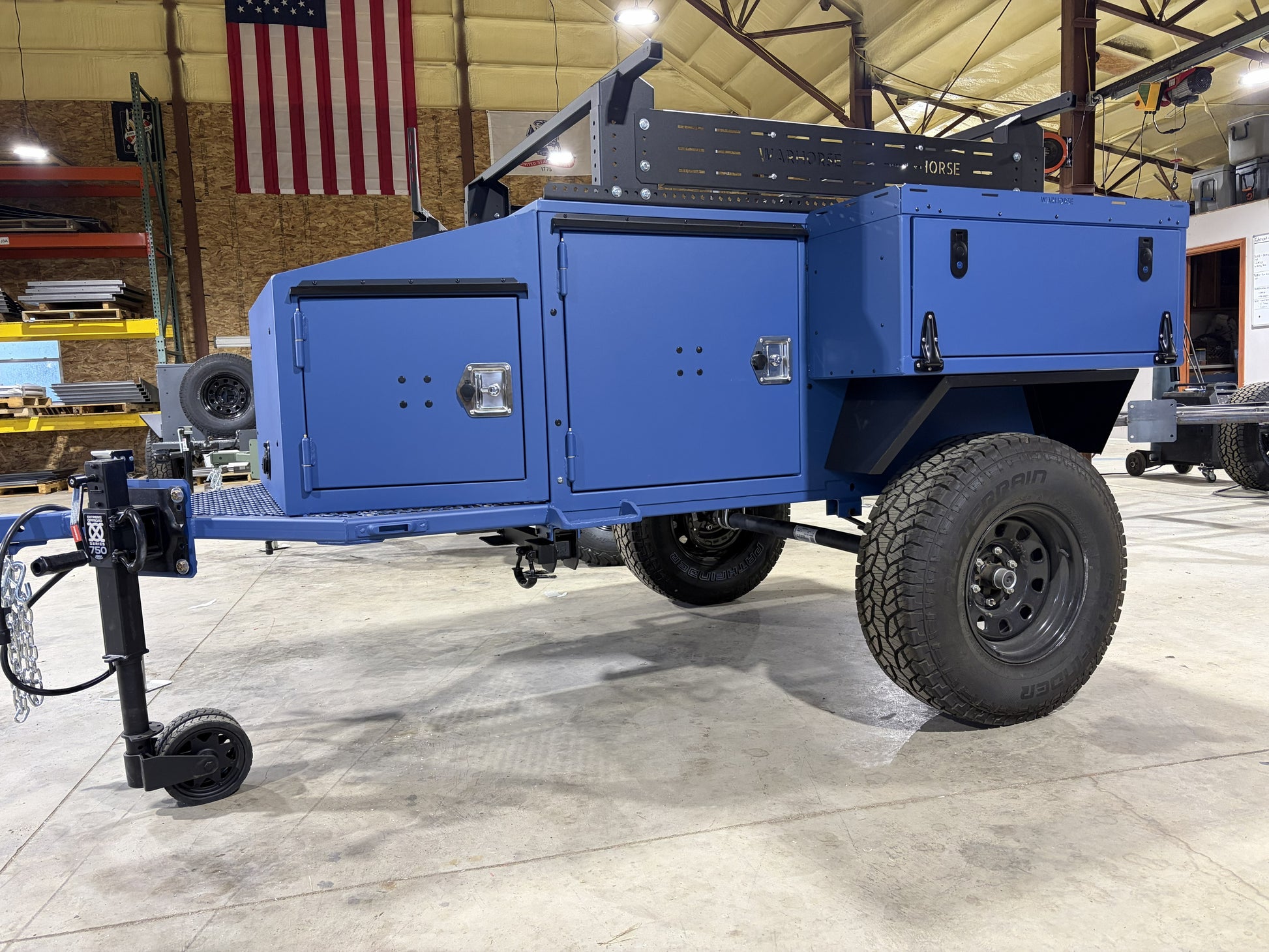

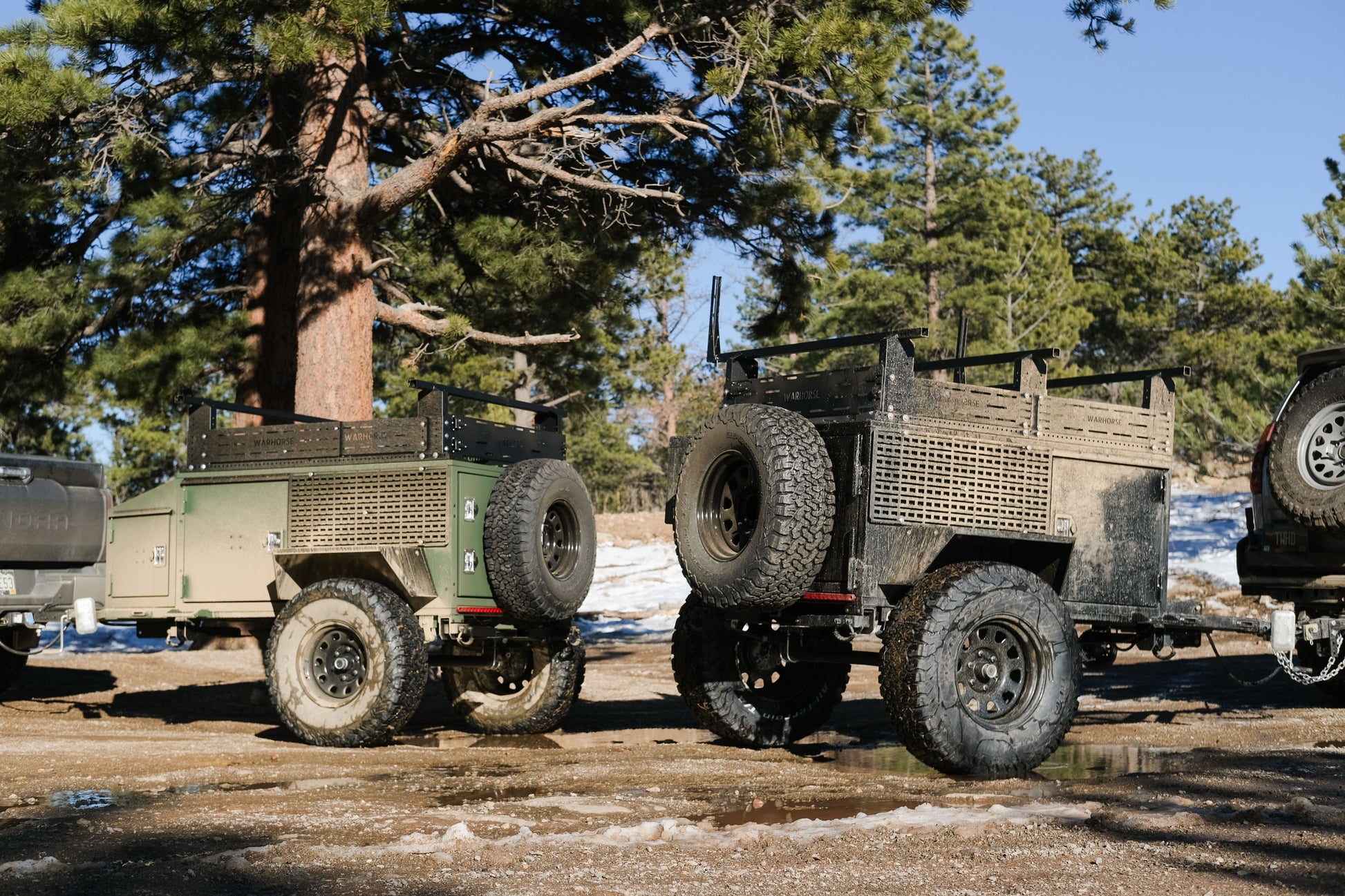

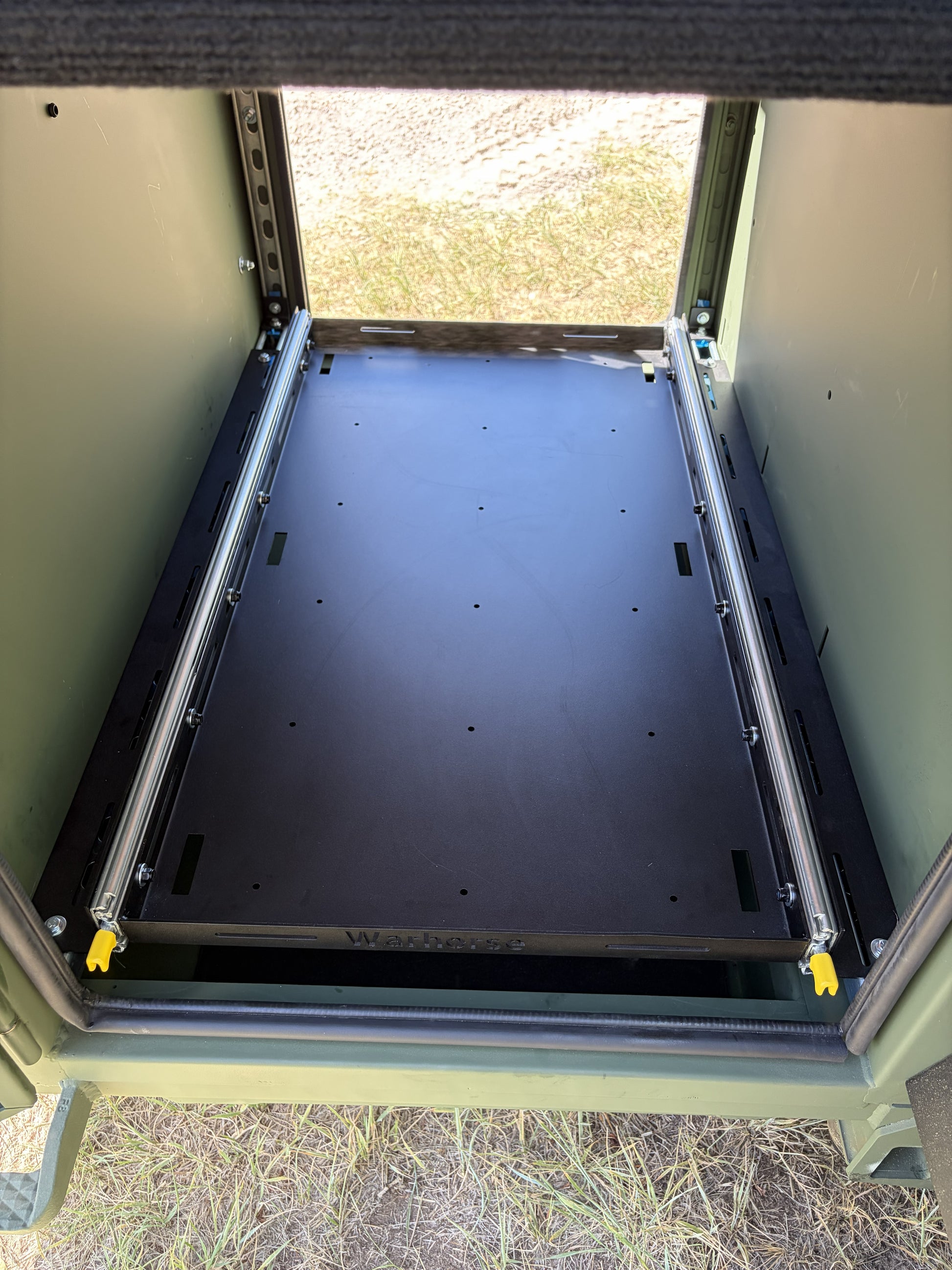

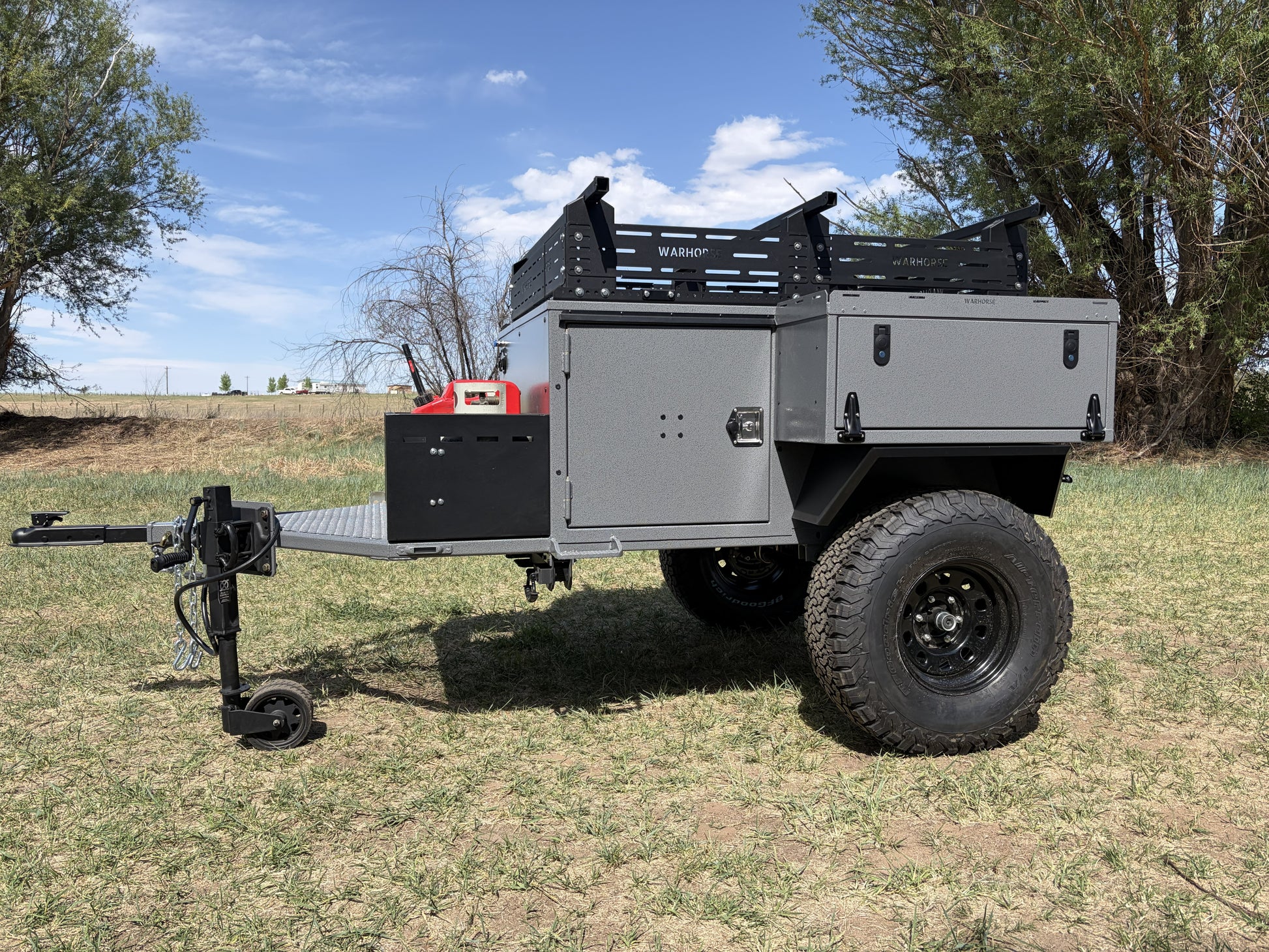

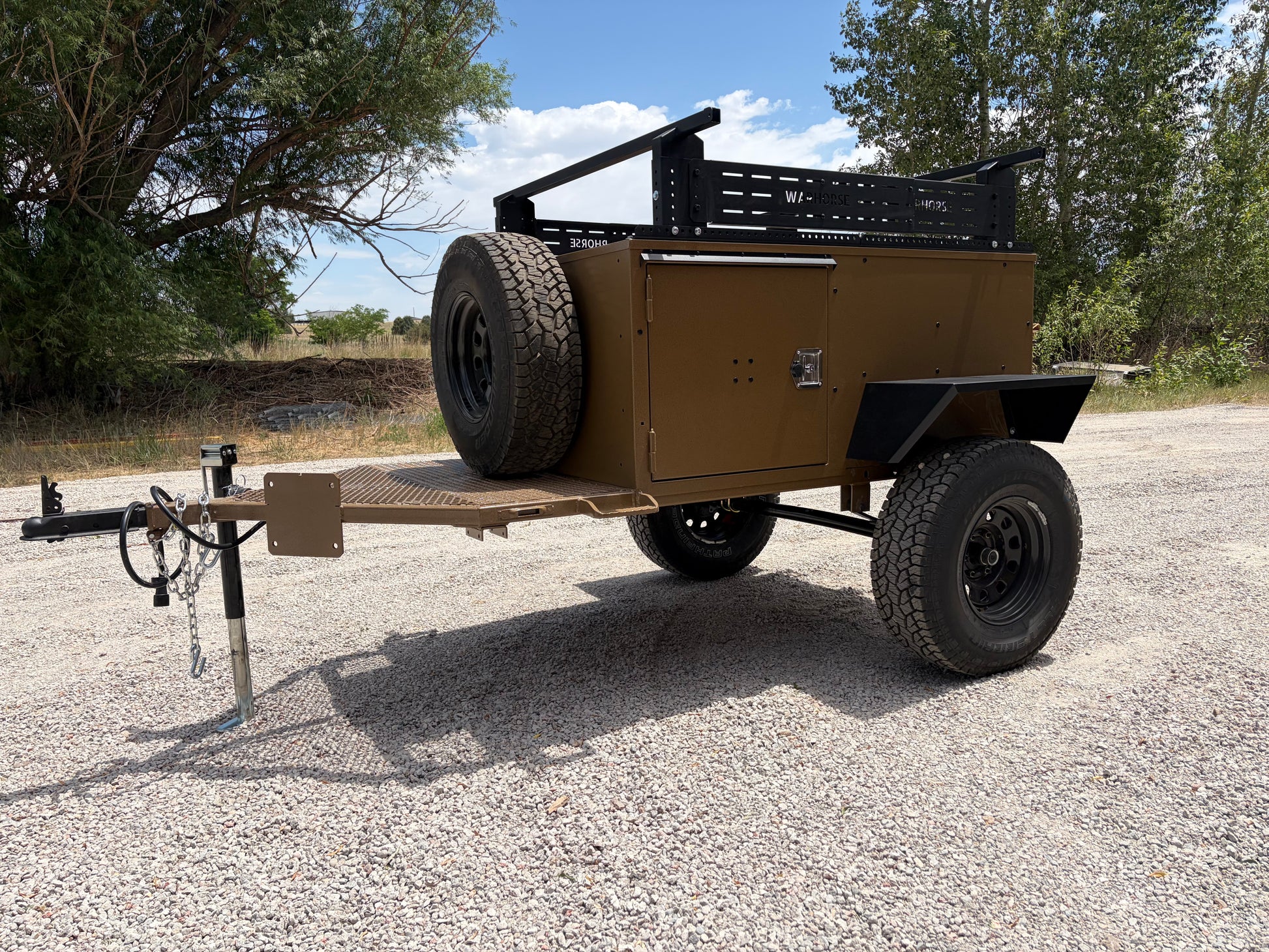

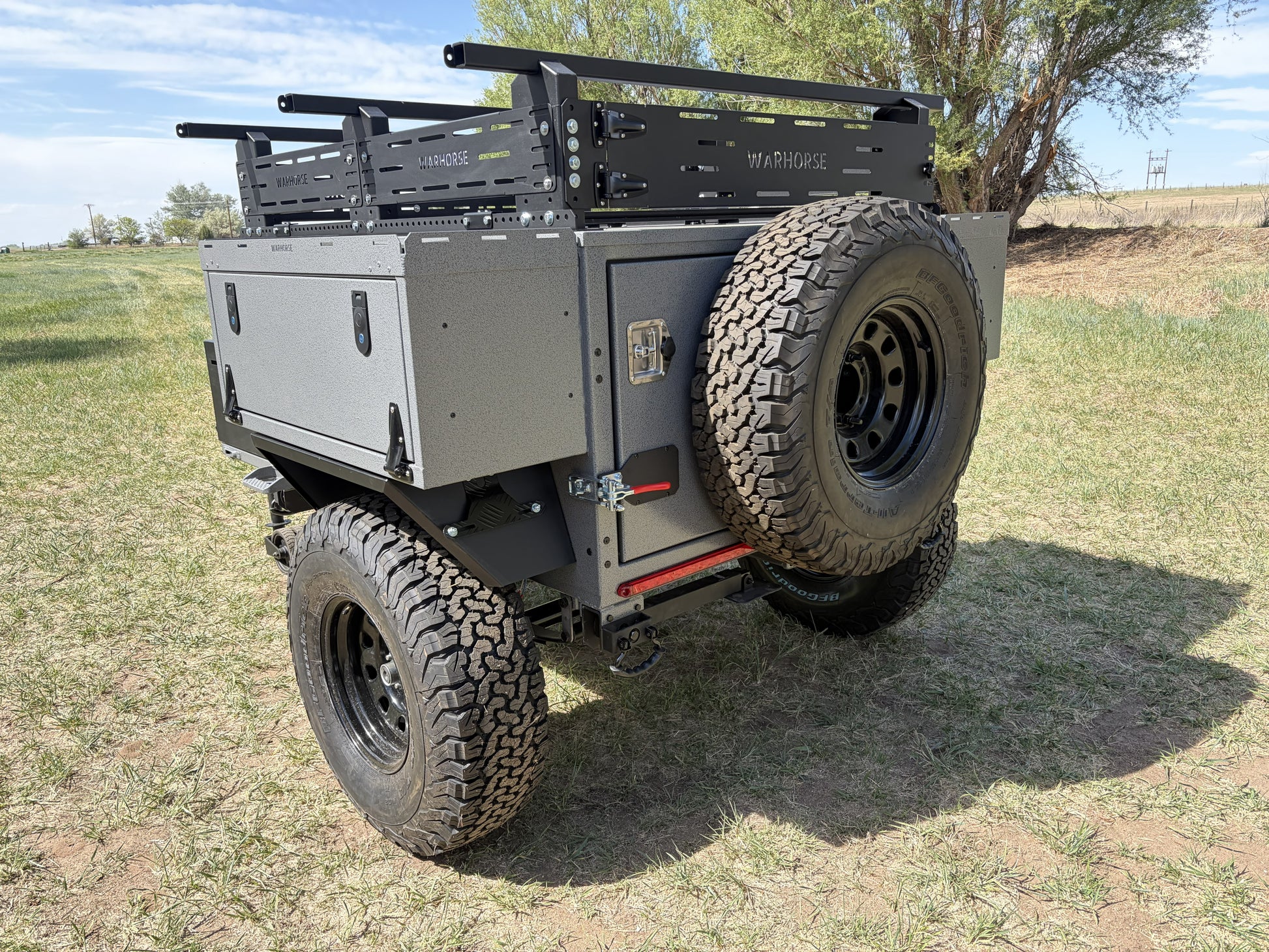

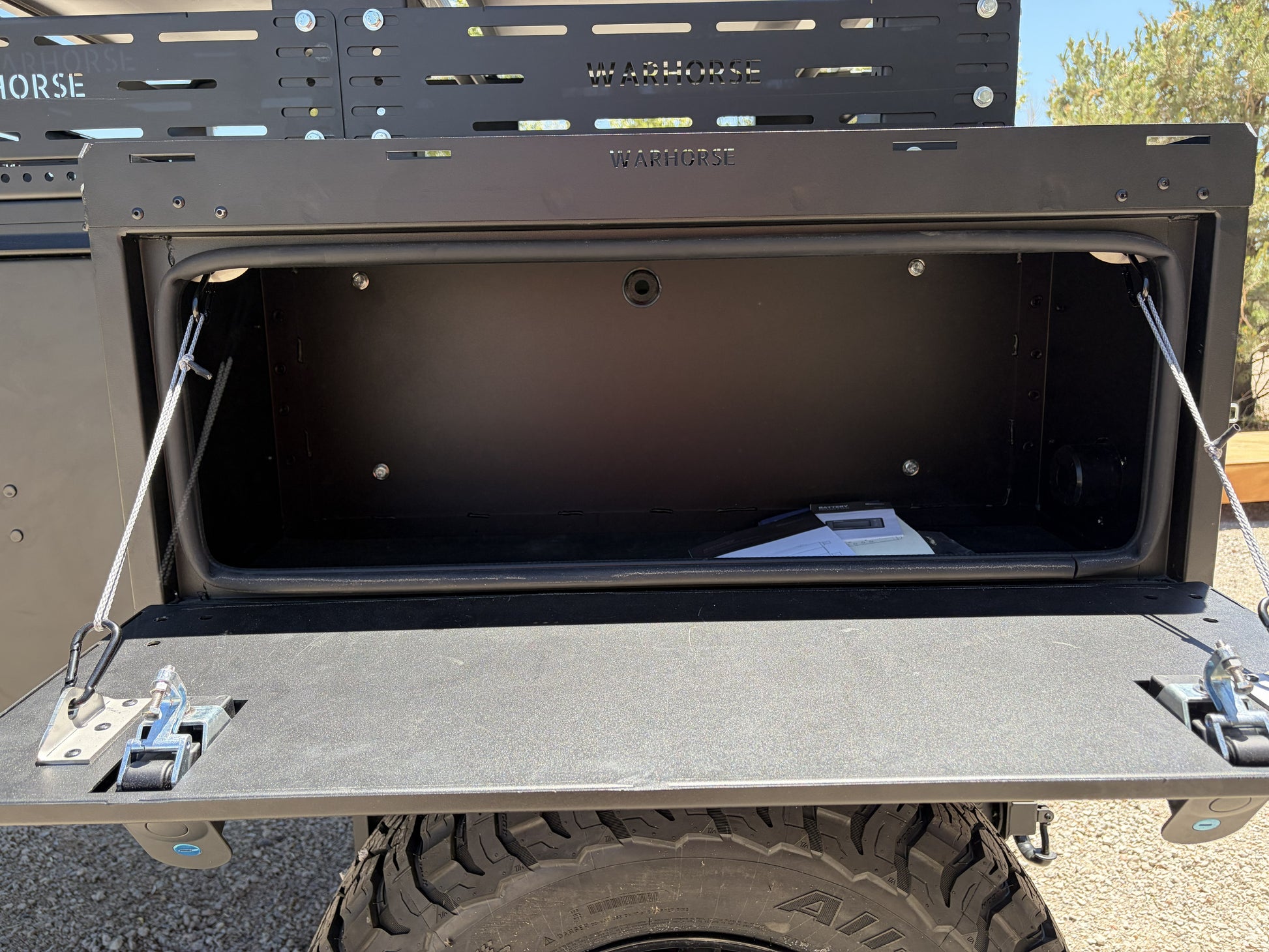

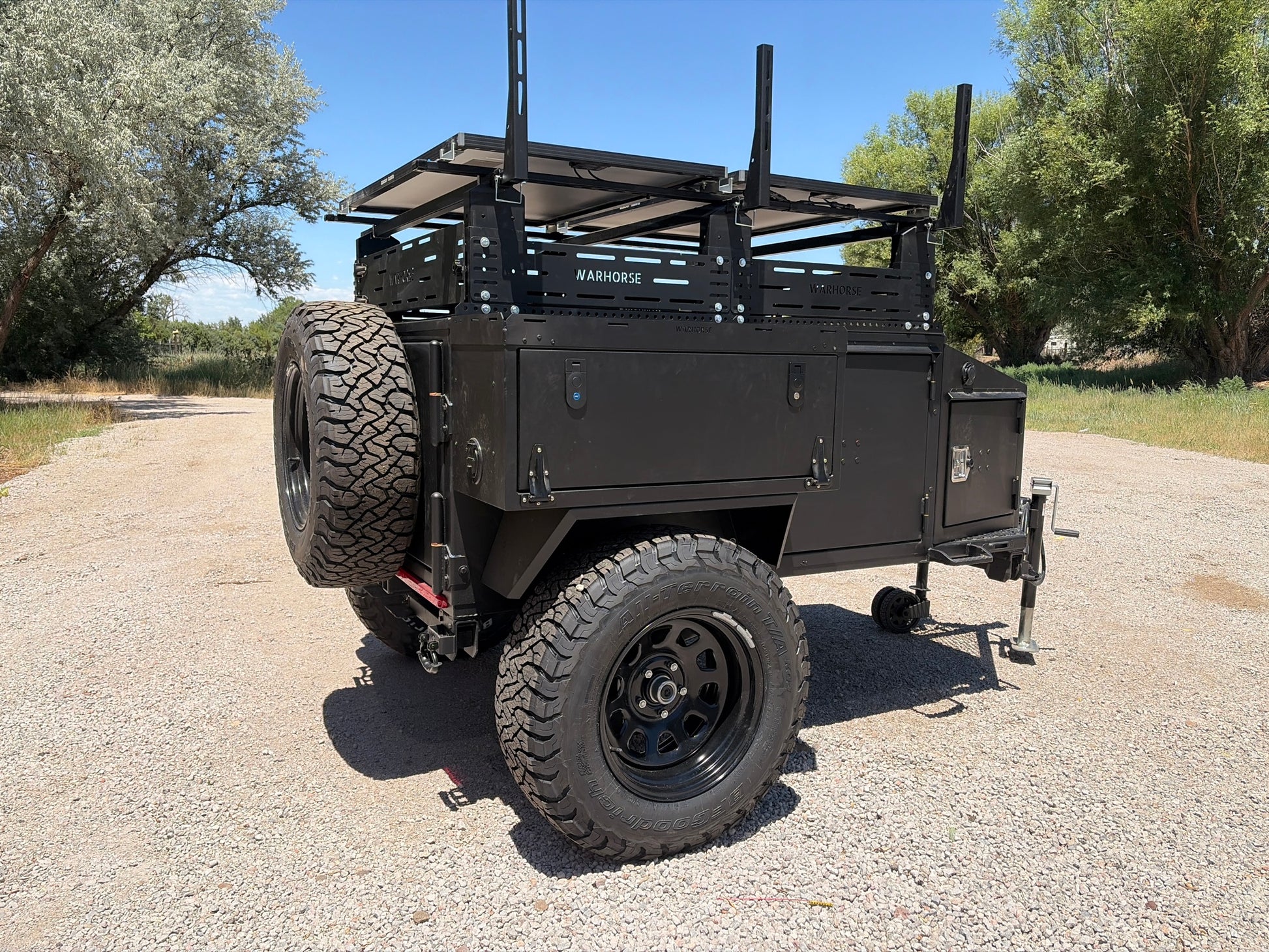

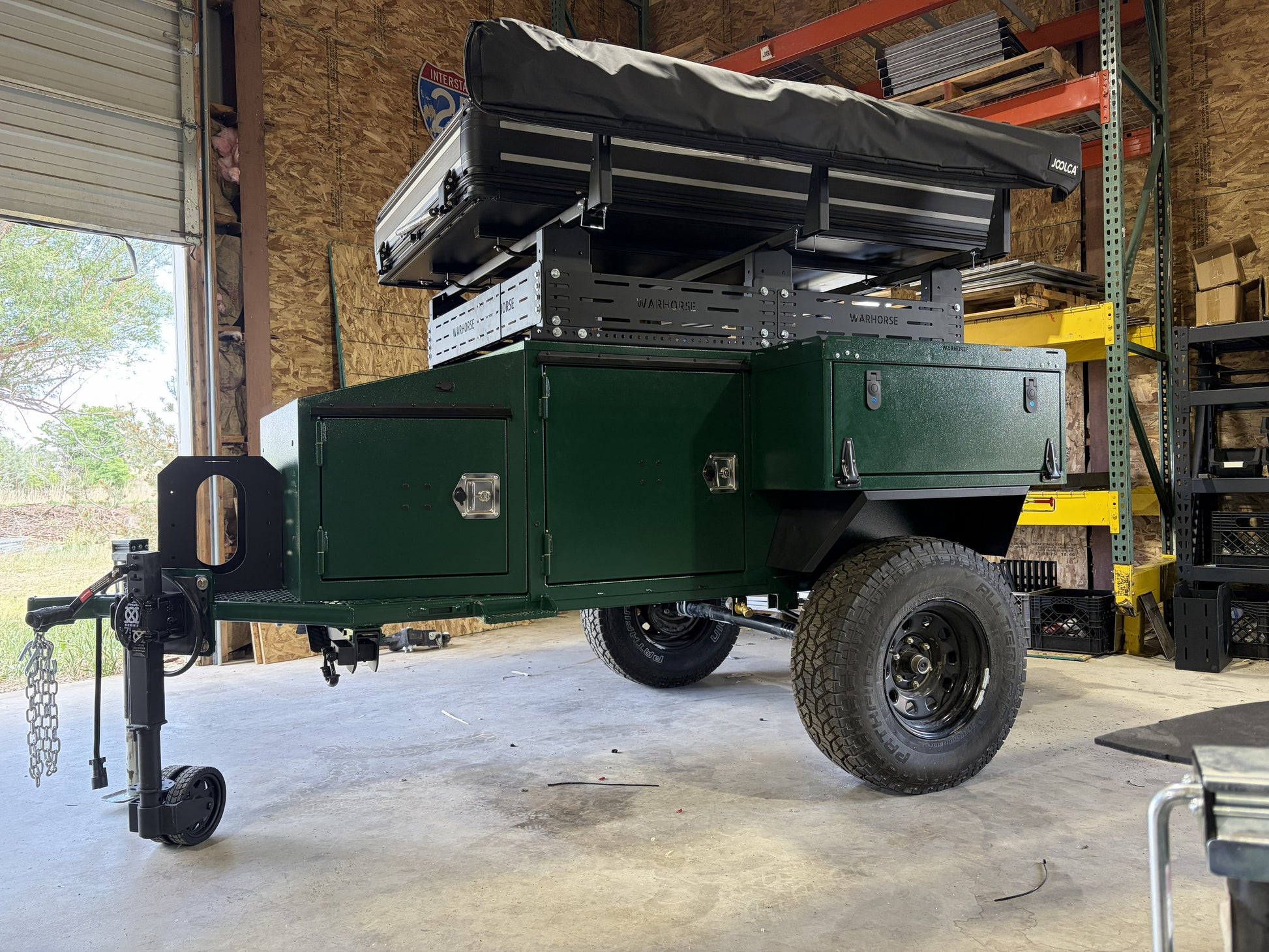

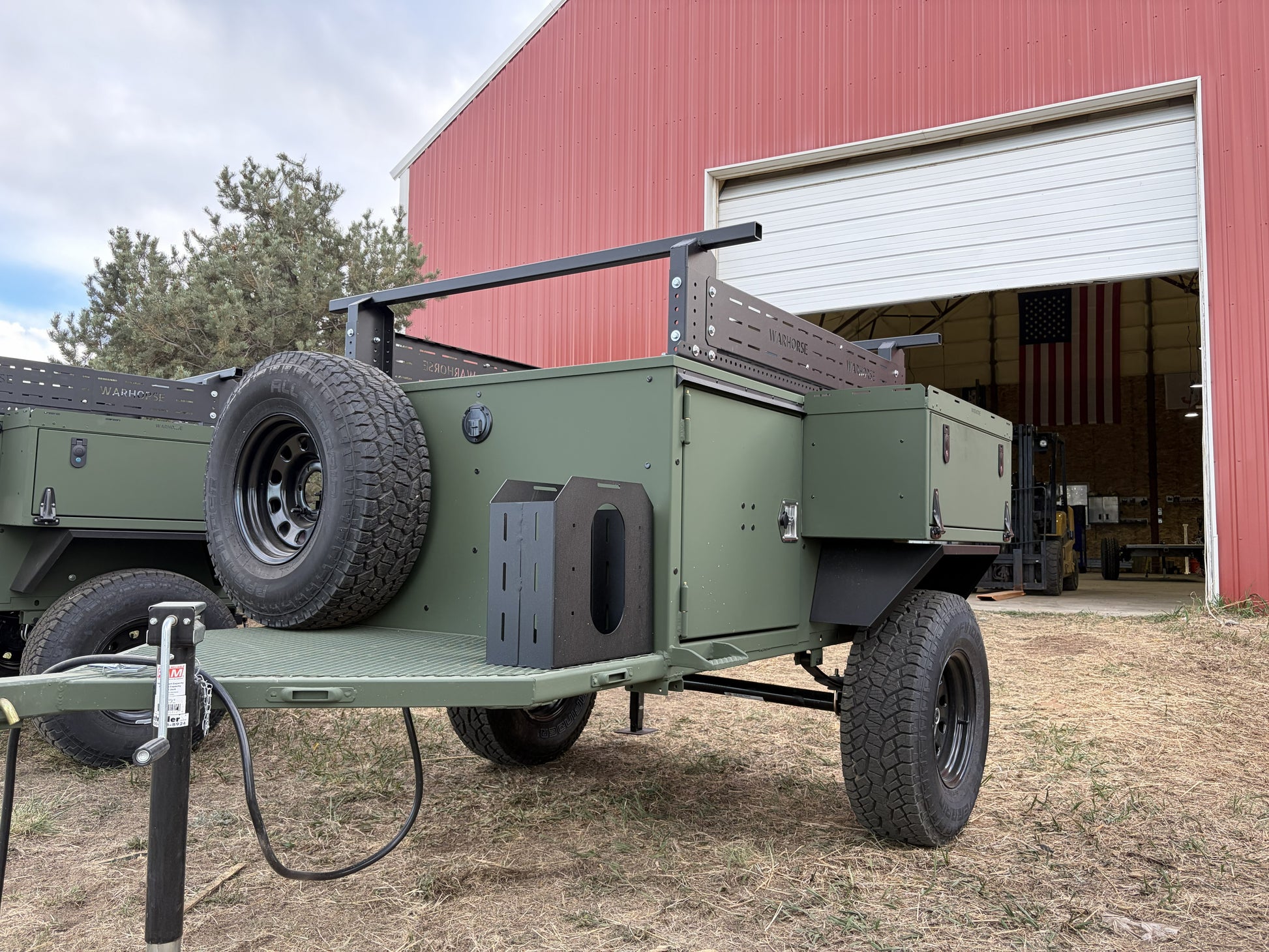

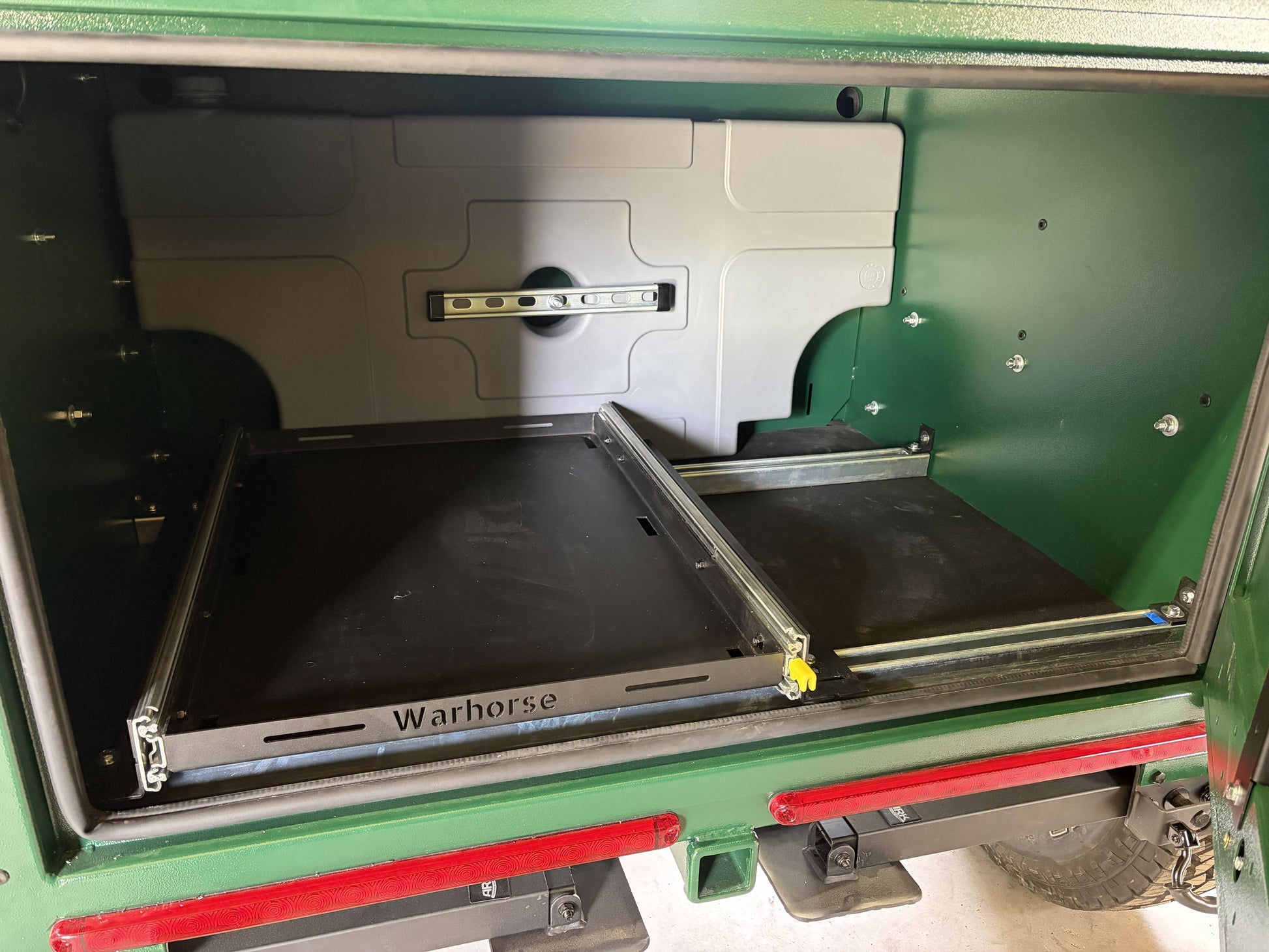

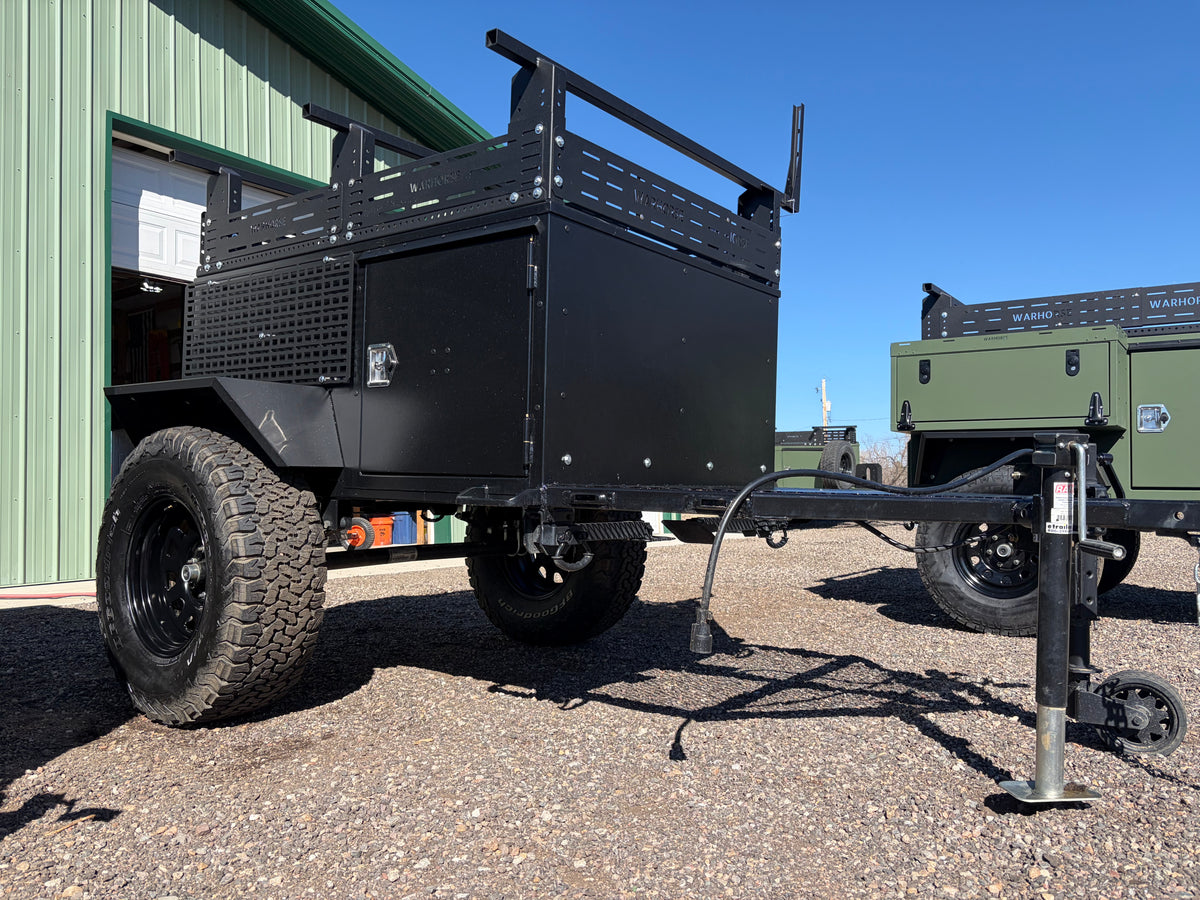

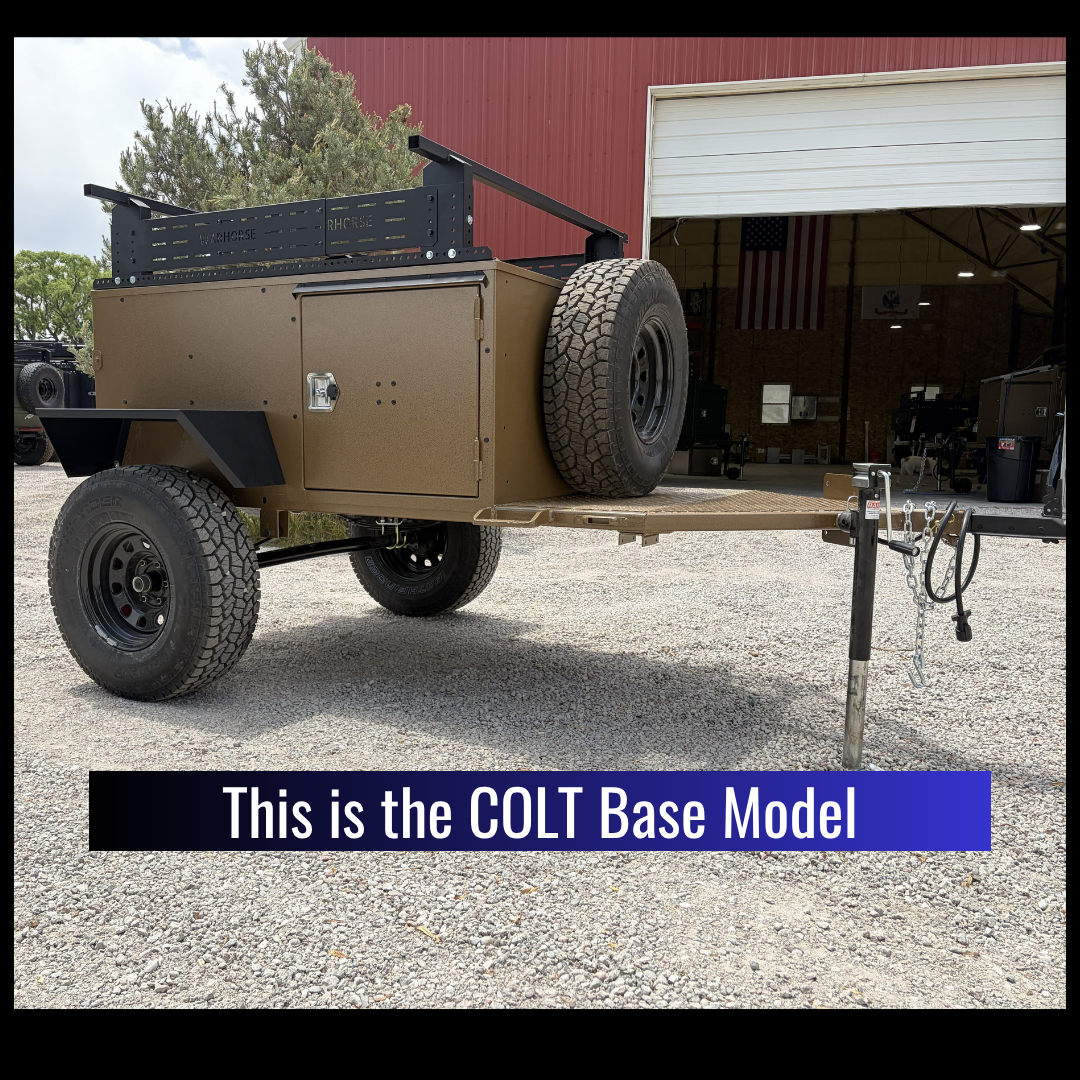

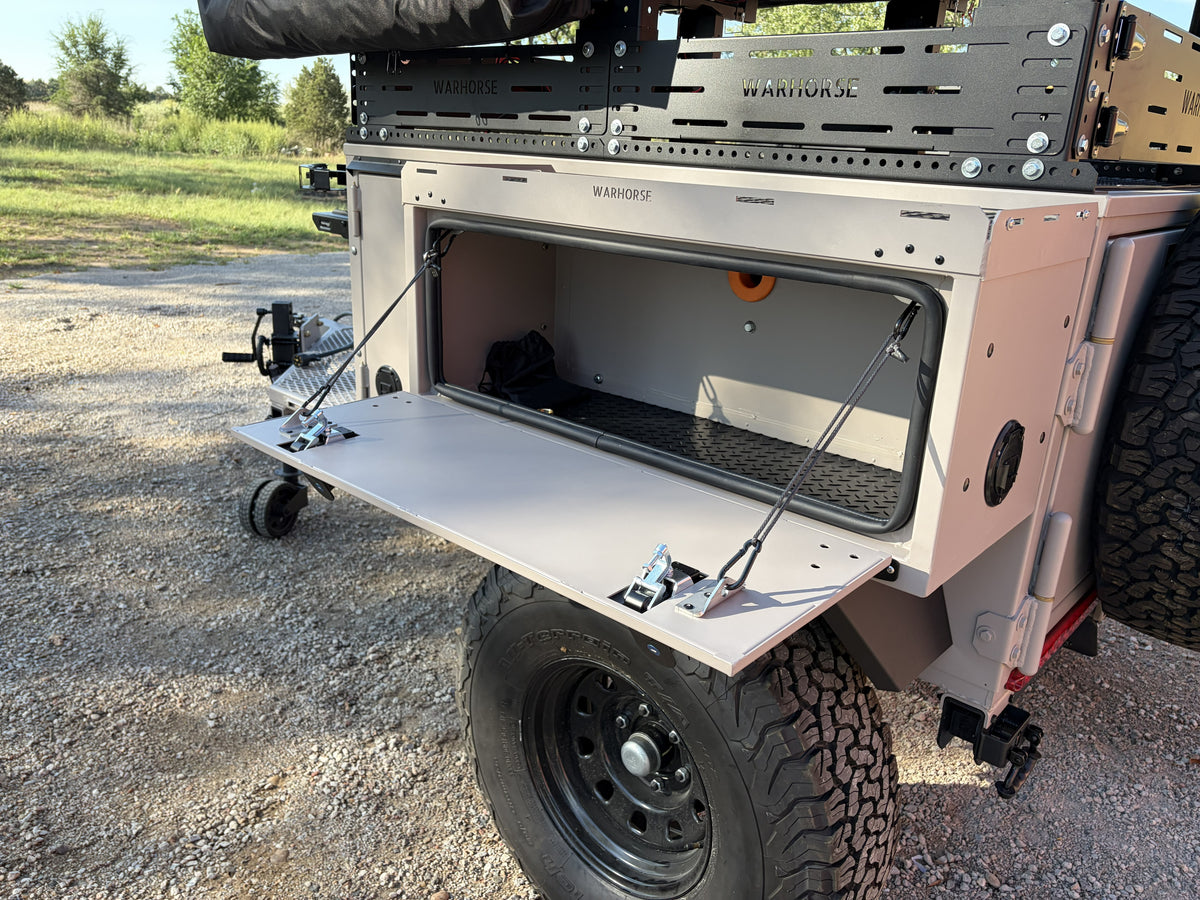

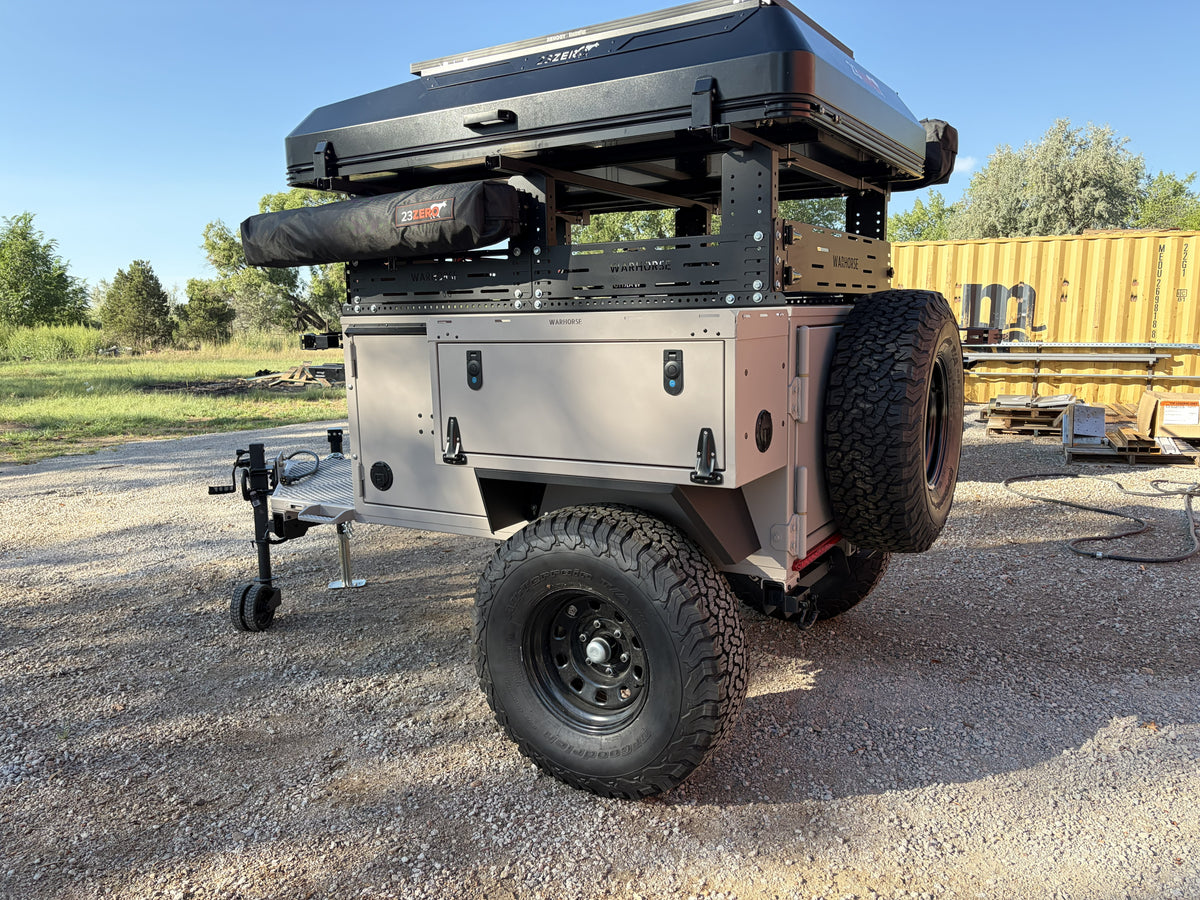

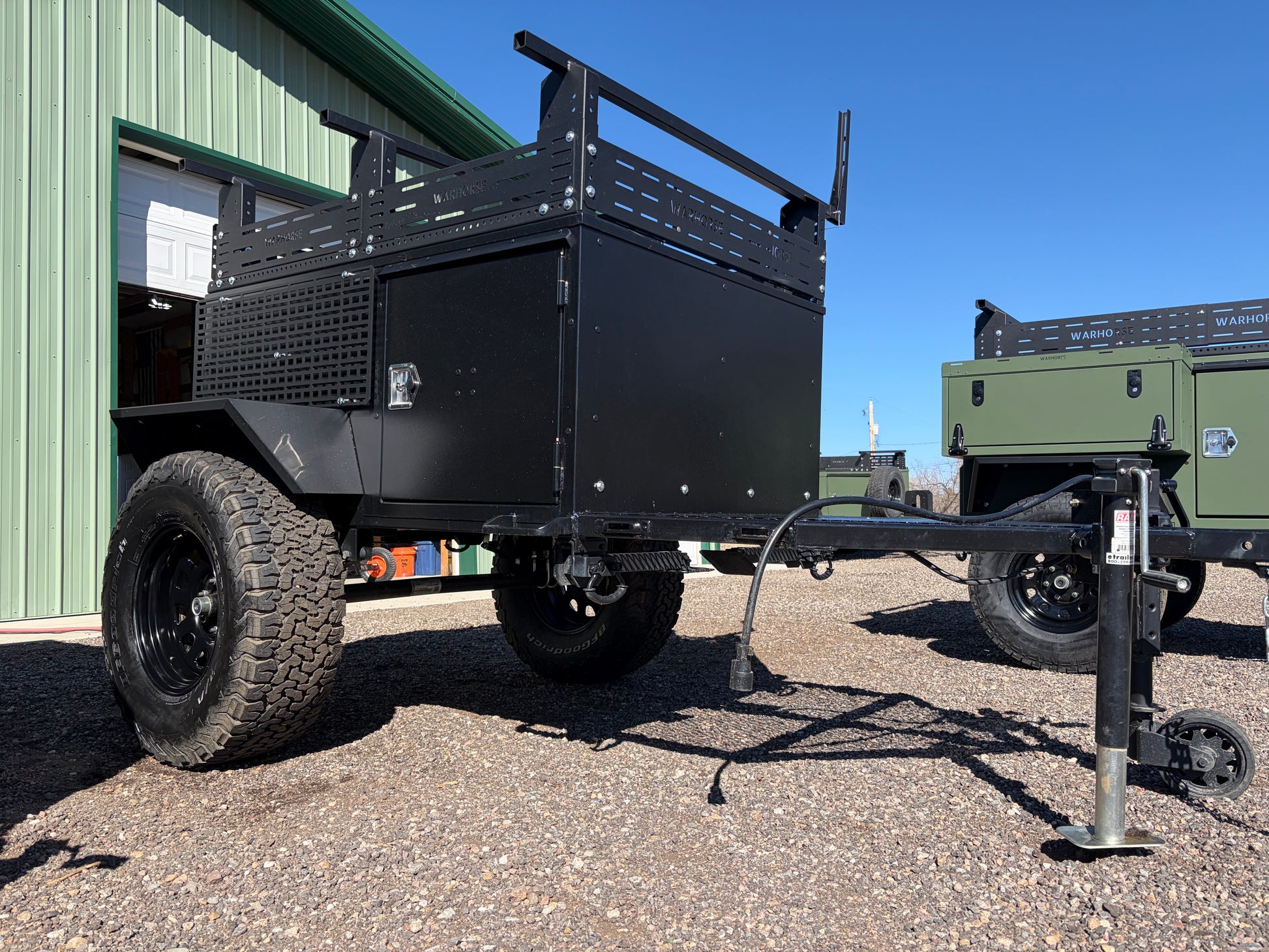

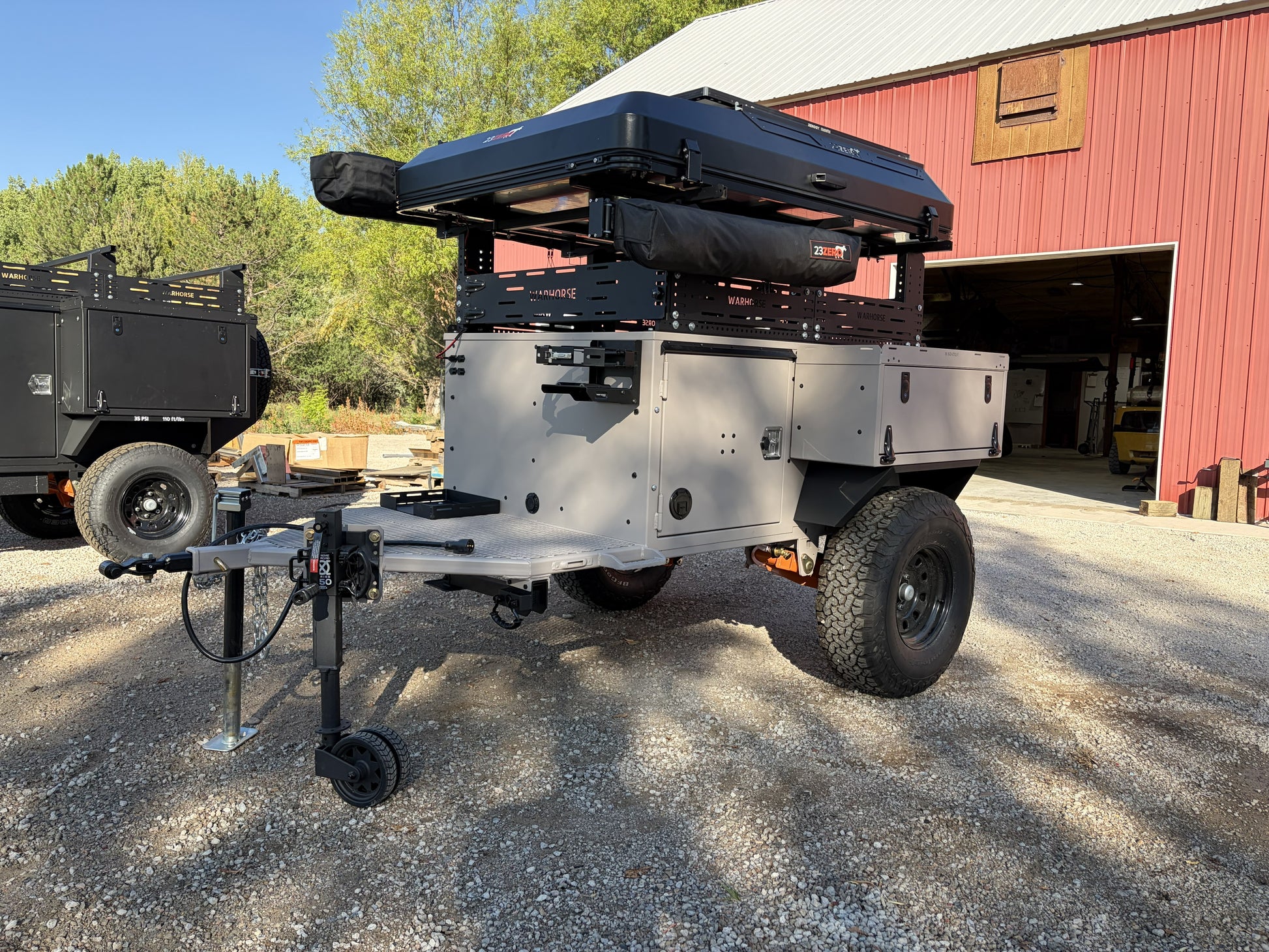

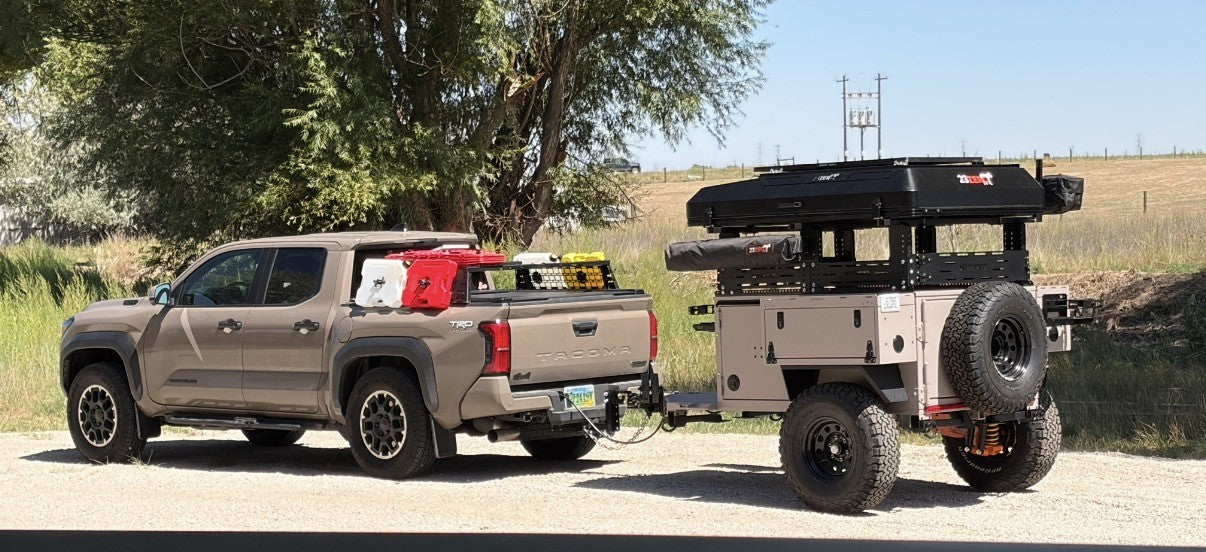

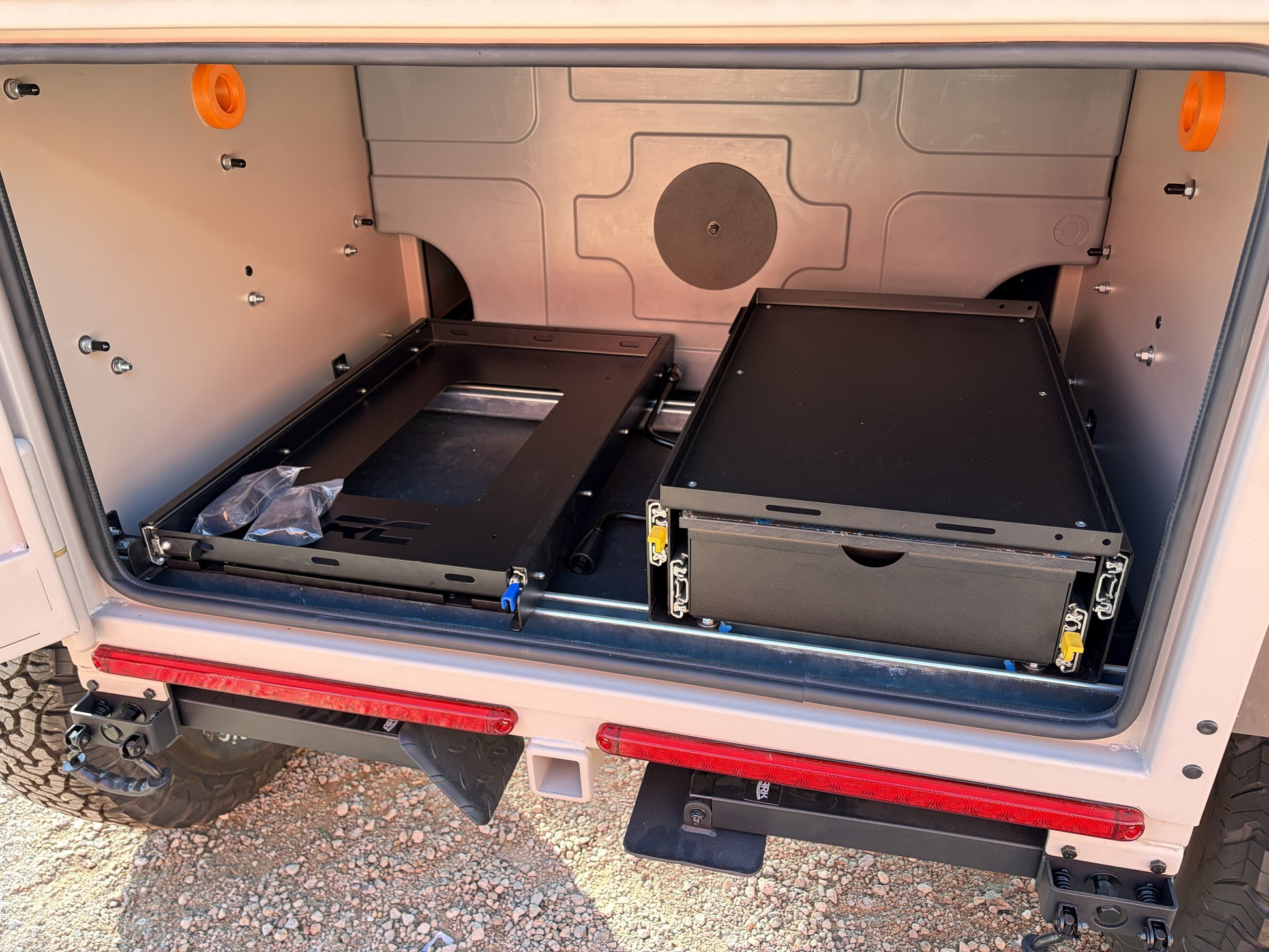

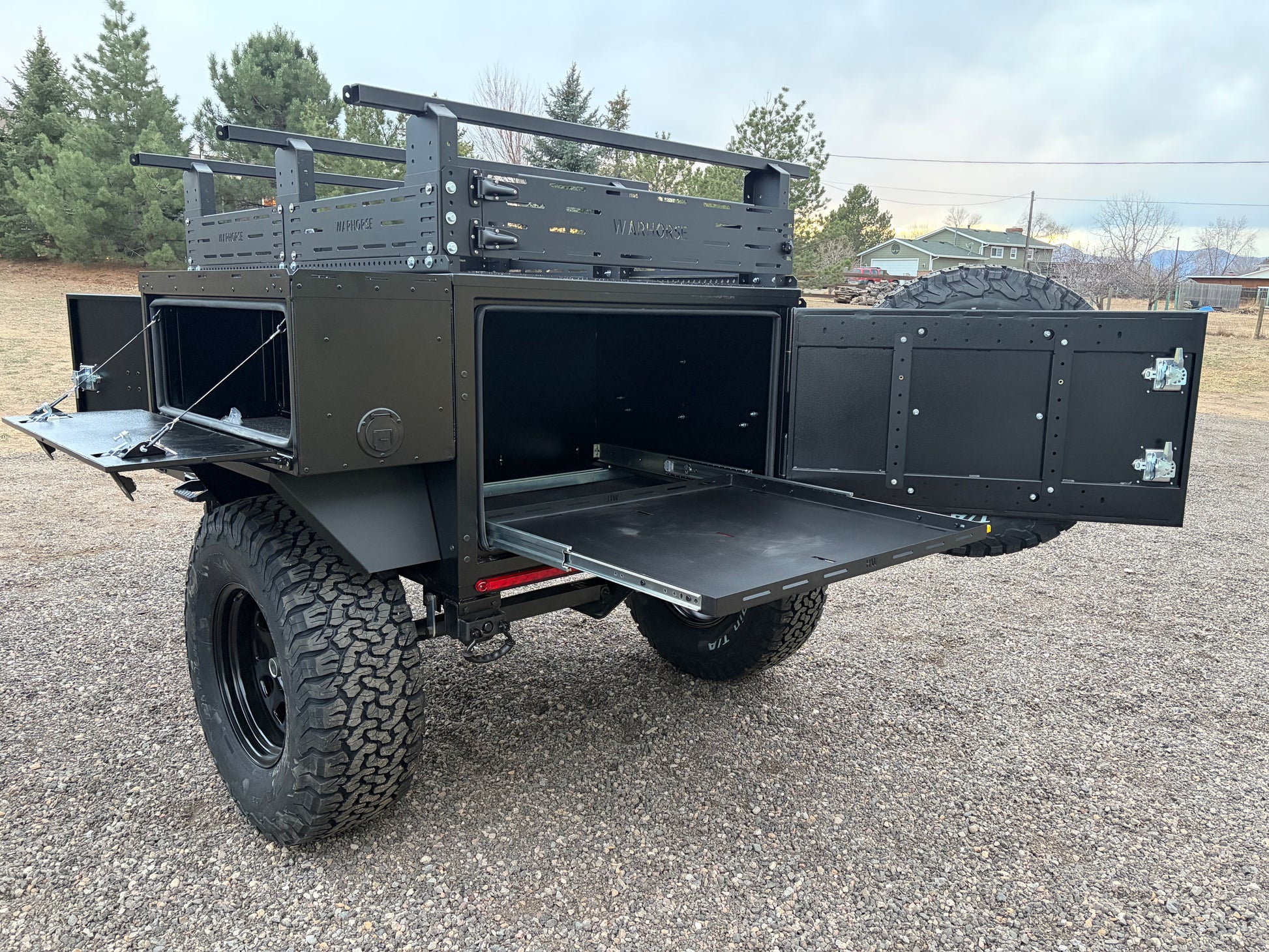

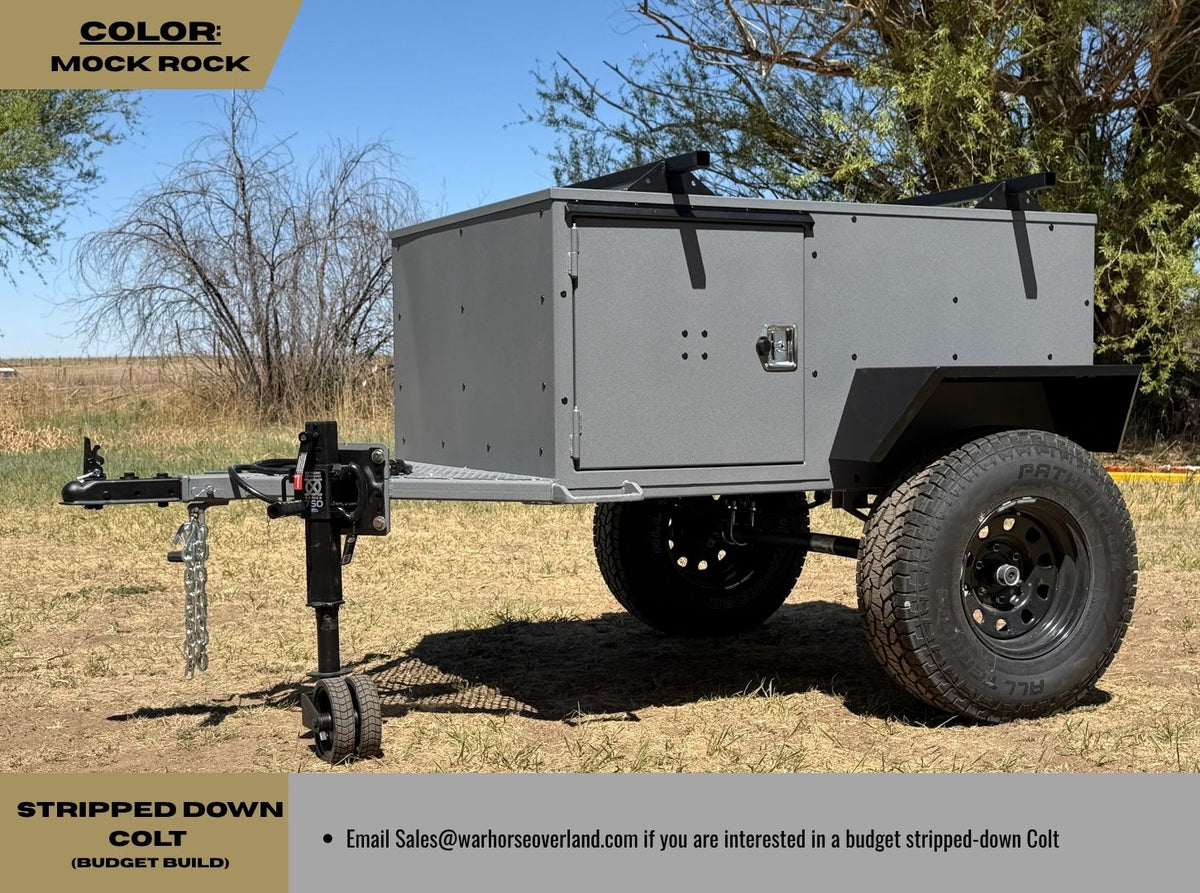

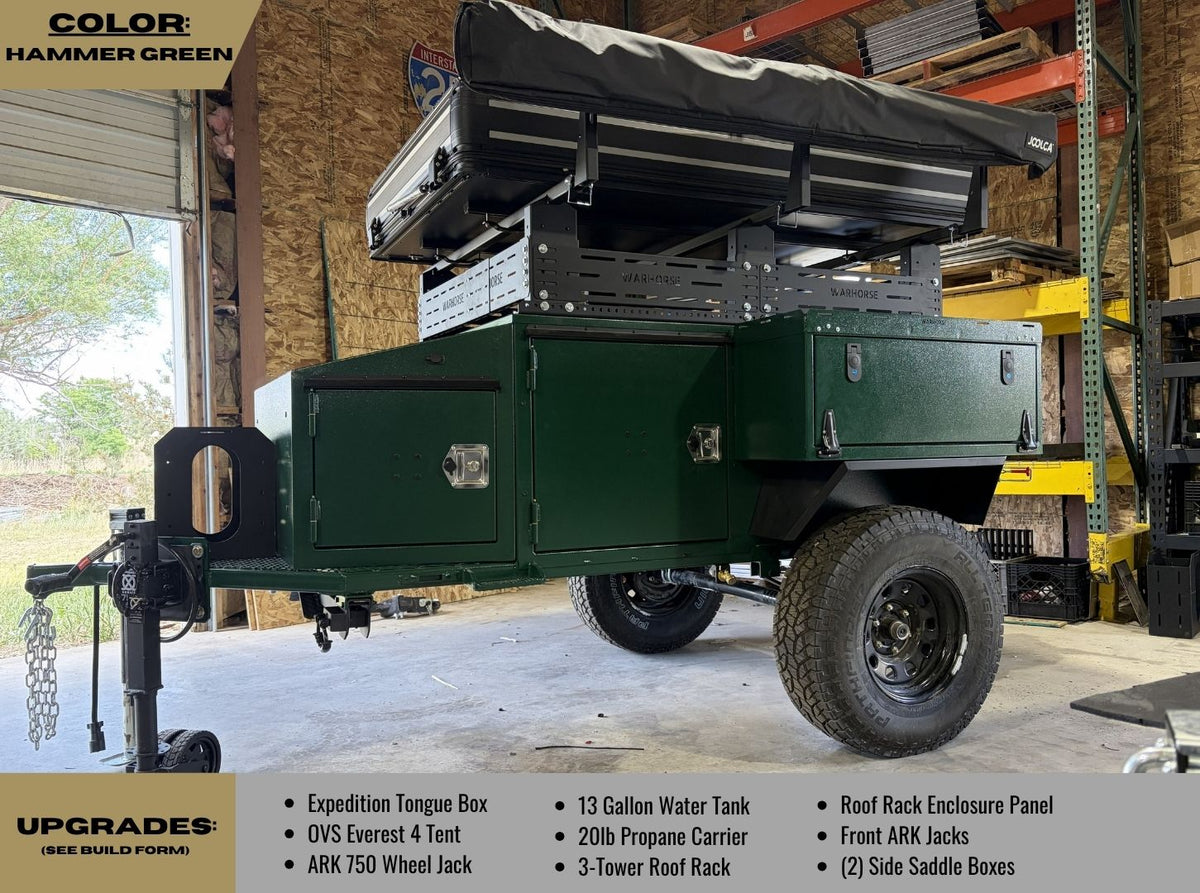

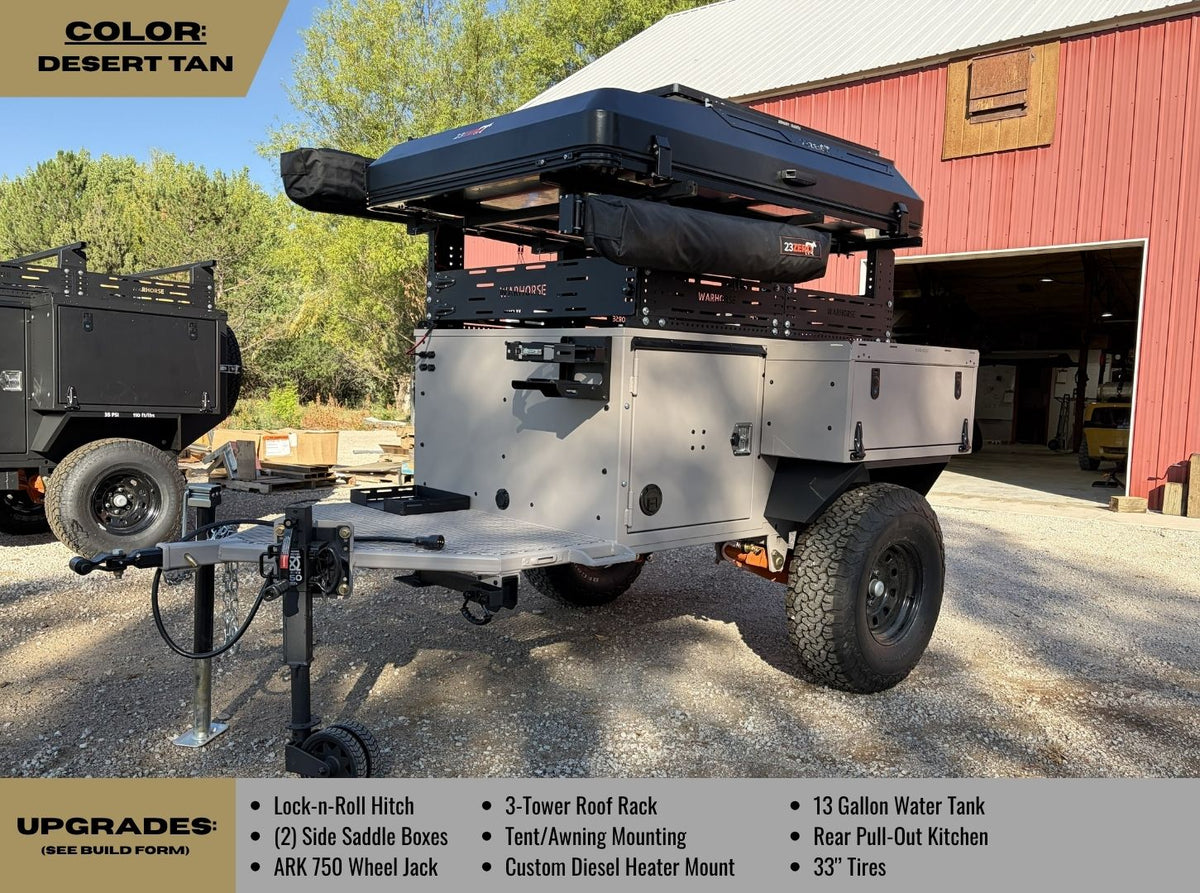

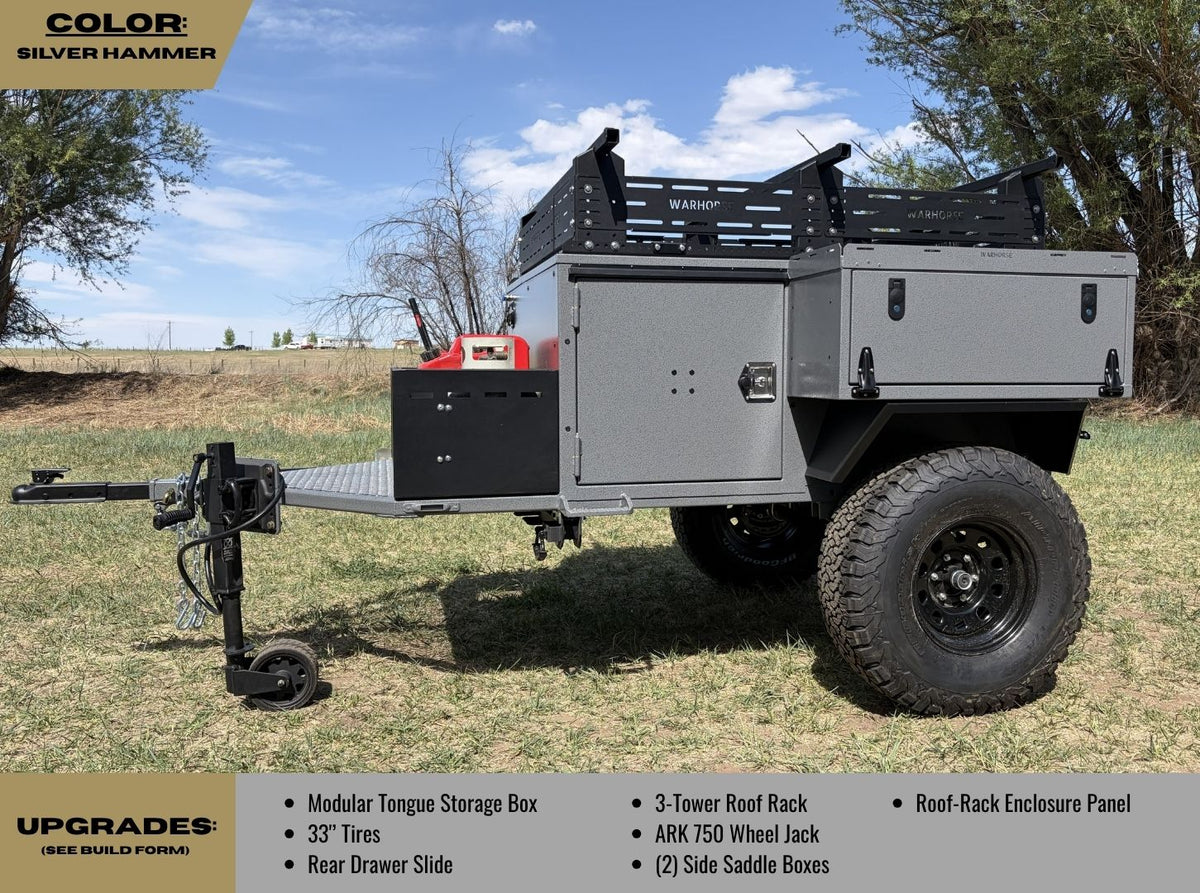

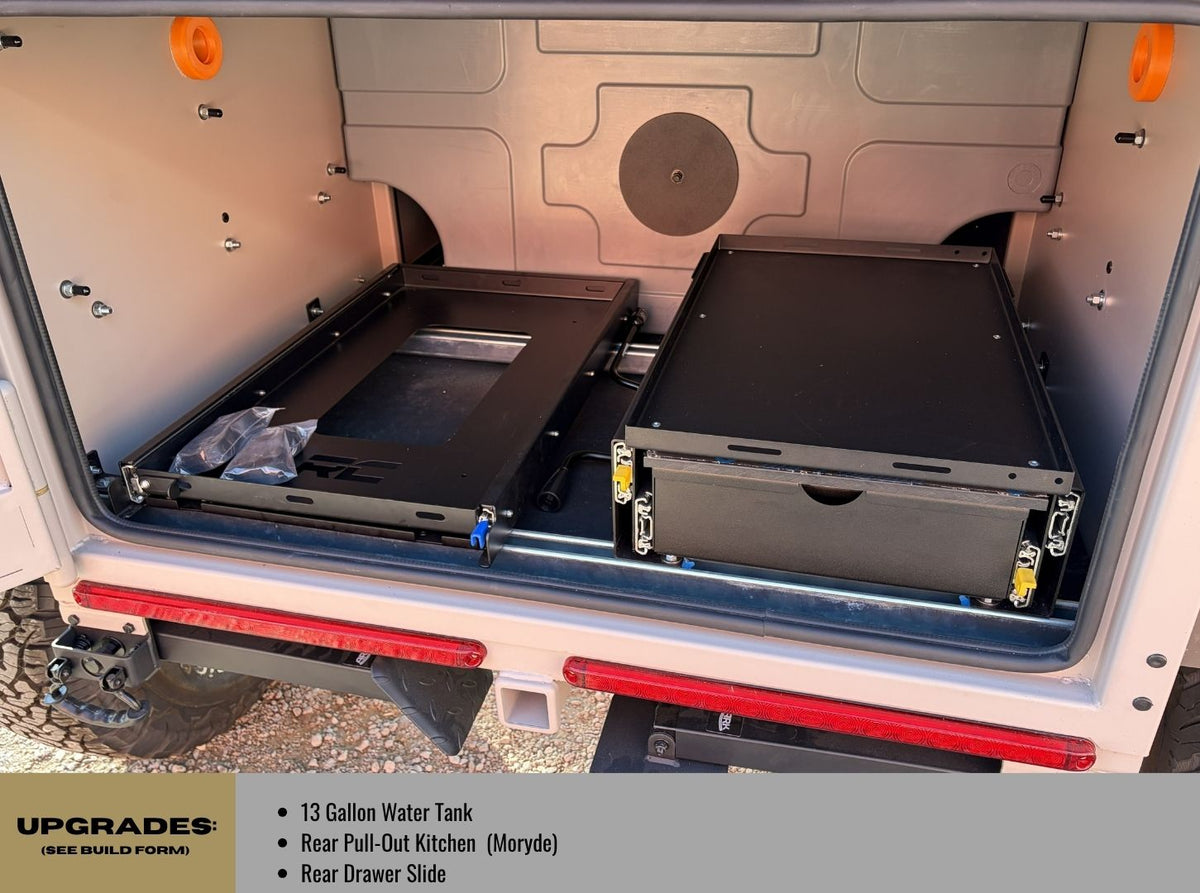

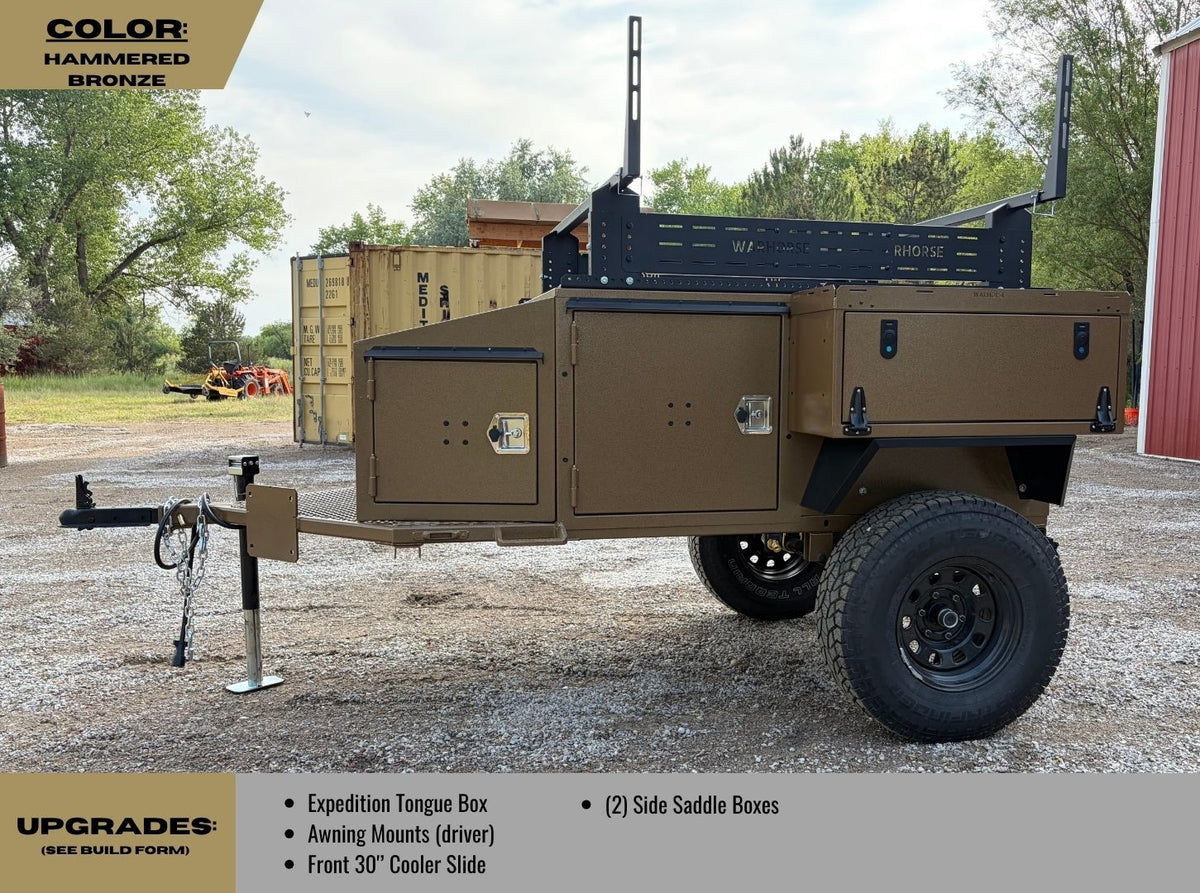

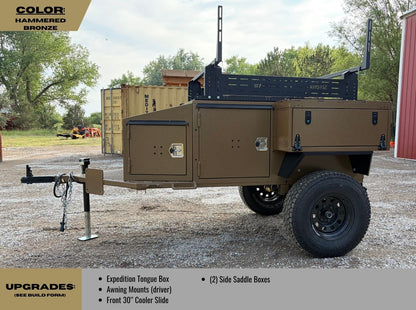

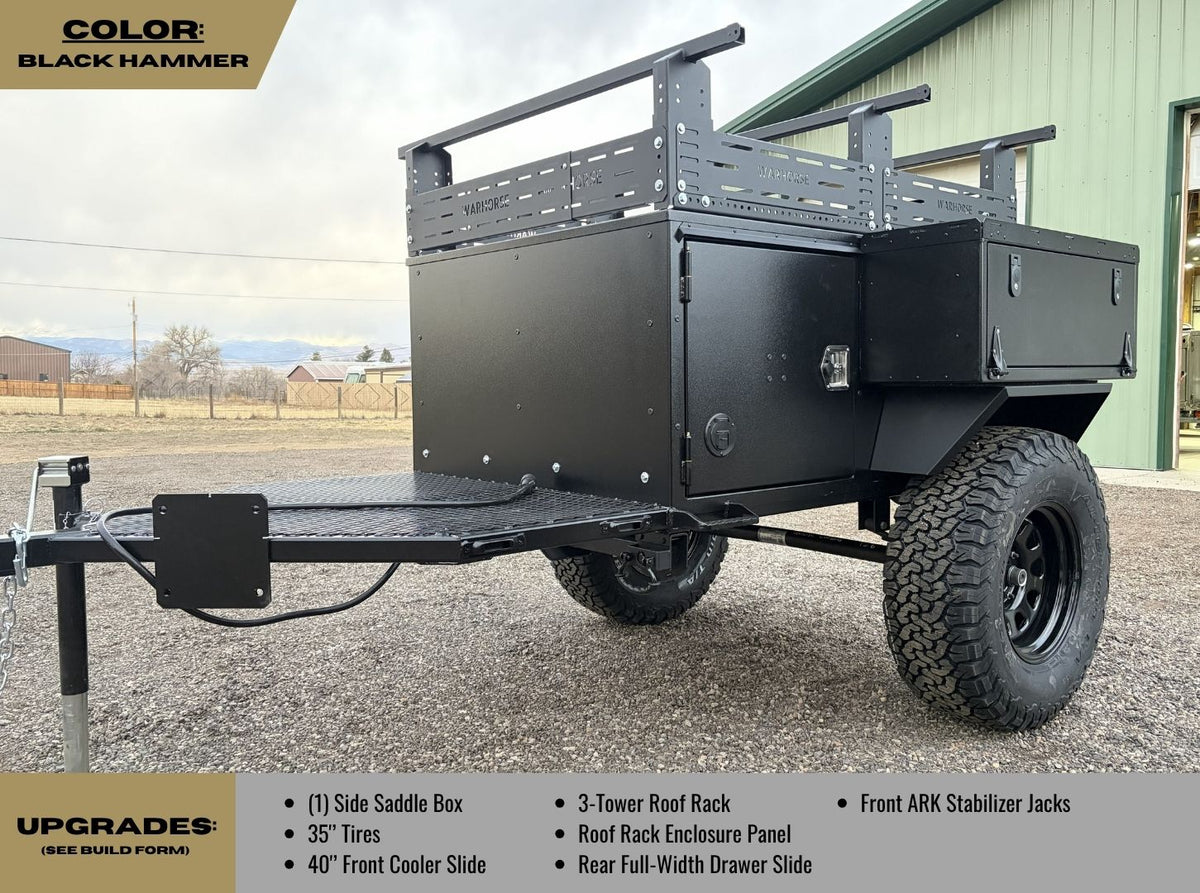

The Colt off-road/overland tent trailer is Warhorse's most popular model. The Colt format is the perfect balance of storage space and a smaller format behind your vehicle. The two 24'' wide side doors accommodate any aftermarket cooler or slide. The rear compartment can also house a ton of gear including a 13-gallon water tank. The tongue-length/platform can also be lengthened to accommodate bikes, fuel/propane large tongue boxes and other items. The adjustable roof-rack is great for housing kayaks and other items and can be enclosed with access to a door (great for chairs and tables).
Each trailer is equipped with a Roof-Rack, Roof-Rack panels, rear ARK Fold-Down Jacks, keyed alike doors, custom colors and an extended tongue if desired and a removable 2'' front coupler. All trailers come with electrical. Brakes are available if desired.
With at 65''L x 48''W x 30'' T box, the Colt is truly a do-all trailer.
There are two suspension options available for the Colt.
Standard is a 3500lb Straight axle, but the 3500HD Timbren axles are an option.
Things to consider: the straight axle is most serviceable and reliable and can use 5-lug, 6-lug and 8-lug bolt patterns. The Timbren 3500HD can only accommodate 6-lug and 8-lug wheels (no 5-lugs, sorry Jeep folks). The Timbren 3500HD rides very smooth, but you are limited to 3500lbs whereas upgrading a straight axle from 3500lbs is an easy task (you can't change the Timbren once it's on there). Long-term, straight axles are more serviceable and reliable but they do ride rougher.
What's Included?
| Dexter 3500 Straight Axle (Timbren Upgrade available) |
| Color of your choice |
| Locking doors keyed alike |
| Lights w/ 4-pin connector (Brakes w/ 7-pin available) |

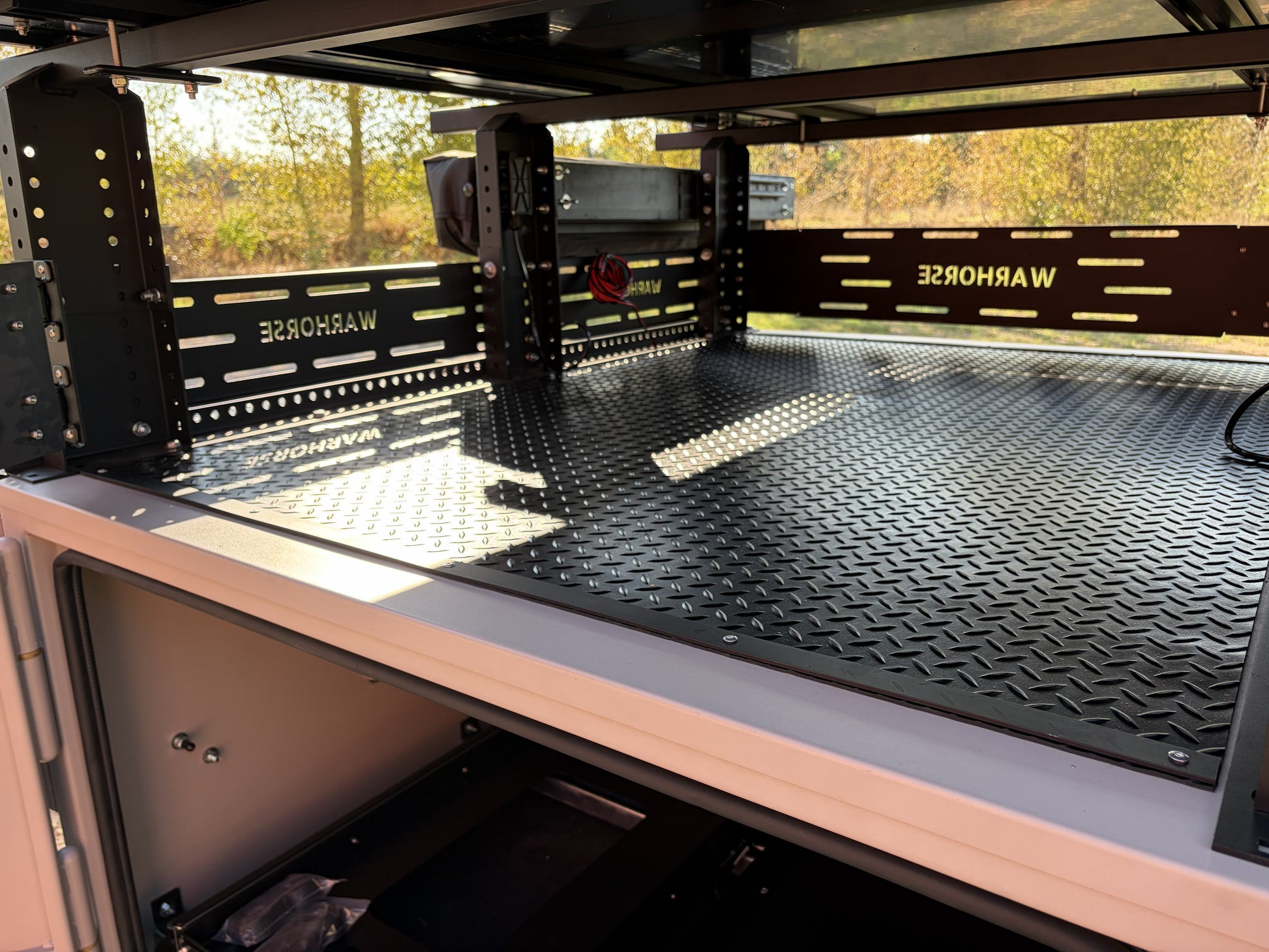

| Roof-Rack (Adjustable roof rack upgrade) |
| Tongue-length of your choice |
| Rear ARK Fold-Down Jacks |
| Side Jack |
| Wall/Partition separating front/rear compartment |
| Space for Spare (rear door spare mounting an option) |
|
|
|
SPECS
| Dry Weight (MOD depending) |
1100lbs - 1300lbs |
| Box Dimensions |
65'' x 48'' x 30'' |
| Total Length |
8 Feet - 10 Feet |
| Wheel-Base |
72'' |
| Total Height |
66"-78'' |

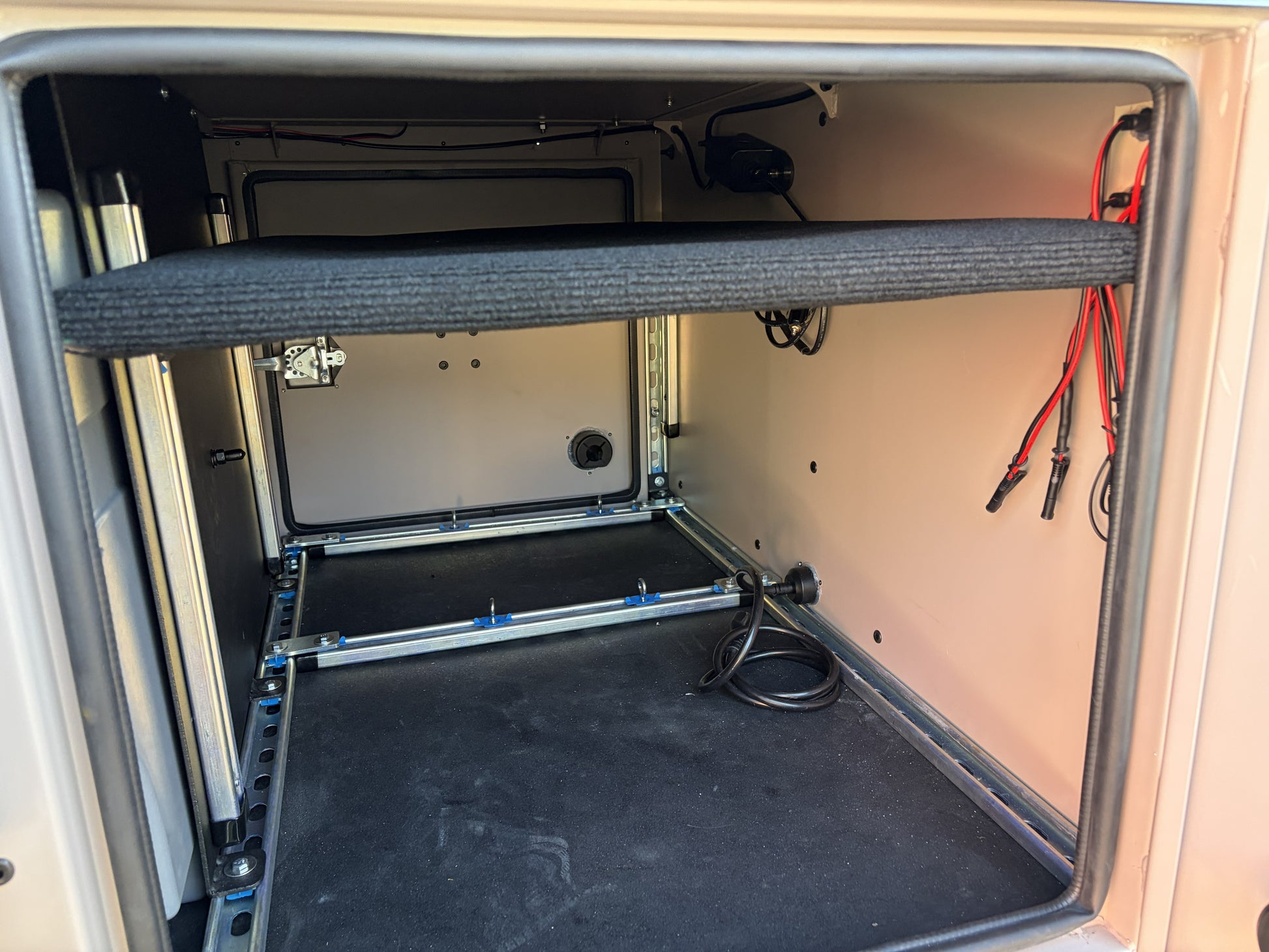

| Front Compartment (LxWxH) |
28.5'' x 48'' x 36'' |
| Rear Compartment (LxWxH) |
36'' x 48'' x 26'' |
| Roof Rack Height |
10" - 17" |
| Tongue Platform Length |
14'' Standard (customizable) |
| Ground to Tongue (w/ 31'' tires) |
24'' |
| Bolt Pattern |
6x5.5 |
| Wheel Size |
15 x 8 |
| Tire Size |
31'' |
| Axle |
Dexter 3500, Timbren ASR3500HD |
| Brakes |
None, 10'' Electric |
| Connection |
4-Pin, 7-Pin |
|
